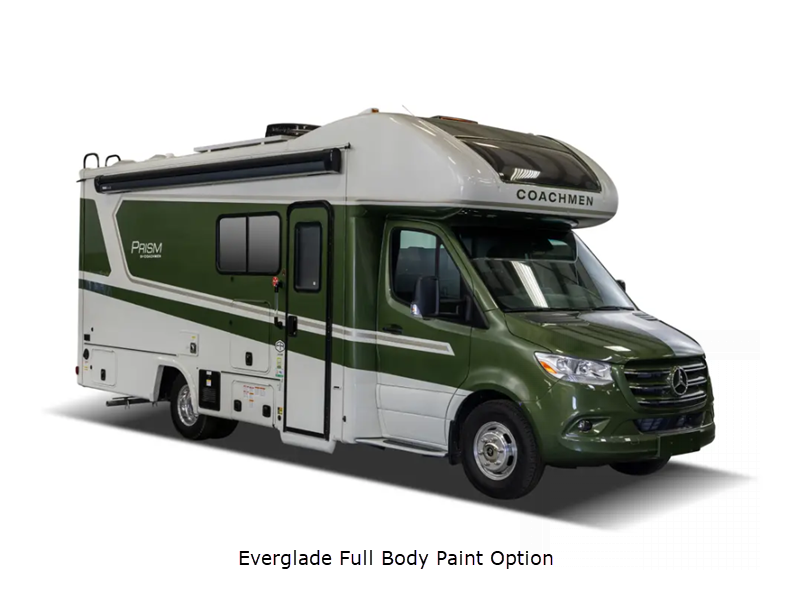

Coachmen RV Prism Elite Motor Home Class C - Diesel RVs For Sale
The Prism Elite Class C diesel motorhomes by Coachmen RV offer unique styling, luxury, and exciting drivability with the prestige of a Mercedes-Benz Sprinter chassis. Whether you travel near or far, this multi-use touring RV will make you want to continue driving and exploring!
Each is built with an automatic 9G-Tronic transmission, and includes lane assist, attention assist, and adaptive cruise control for safety on the highways and in town. Some of the exterior features include vacuum bonded laminated sidewalls, Azdel SuperLite substrate with aluminum framing, and a molded fiberglass front cap with a front window. You will also appreciate the armless awning for protection from the elements. The interior is just as impressive with an enlarged molded plastic cabover area with cabover bunk, solid surface countertops, an on-demand water heater, and a Firefly Multiplex system to mention a few features.
When you want to start traveling with unique styling, choose a Coachmen RV Prism Elite Class C diesel, and hit the road!
-
Prism Elite 24FSE
Coachmen Prism Elite Class C diesel motorhome 24FSE highlights: Full-Wall Slide ... more about Prism Elite 24FSE
Specifications
Sleeps 4 Slides 1 Length 24 ft 11 in Ext Width 7 ft 8 in Ext Height 10 ft 9 in Int Height 6 ft 9 in Exterior Color Crystal, Moonstone, Napa Valley GVWR 11030 lbs Fresh Water Capacity 35 gals Grey Water Capacity 32 gals Black Water Capacity 35 gals Fuel Type Diesel Engine 4-Cylinder High Output Chassis Mercedes-Benz Sprinter Horsepower 208 hp Fuel Capacity 24 gals Wheelbase 170 in Number Of Bunks 1 Available Beds RV Queen Torque 322 ft-lb Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 70 lbs Water Heater Type Truma Aqua Go On Demand AC BTU 15000 btu Basement Storage 37 cu. ft. TV Info Coach TV Awning Info 14' Armless Gross Combined Weight 15250 lbs Shower Type Standard Similar Floorplans
-
Prism Elite 24MBE
Coachmen Prism Elite Class C diesel motorhome 24MBE highlights: 45" x 76" Bunk ... more about Prism Elite 24MBE
Specifications
Sleeps 4 Slides 2 Length 24 ft 11 in Ext Width 7 ft 8 in Ext Height 10 ft 9 in Int Height 6 ft 9 in Exterior Color Crystal, Moonstone, Napa Valley GVWR 11030 lbs Fresh Water Capacity 32 gals Grey Water Capacity 32 gals Black Water Capacity 32 gals Fuel Type Diesel Engine 4-Cylinder High Output Chassis Mercedes-Benz Sprinter Horsepower 208 hp Fuel Capacity 24 gals Wheelbase 170 in Number Of Bunks 1 Available Beds RV Queen Torque 322 ft-lb Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 70 lbs Water Heater Type Truma Aqua Go On Demand AC BTU 15000 btu TV Info Coach TV Lift, Ext. TV Awning Info 14' Thule Gross Combined Weight 15250 lbs Shower Type Standard Similar Floorplans
-
Prism Elite 24CBE
Coachmen Prism Elite Class C diesel motorhome 24CBE highlights: 45" x 76" Bunk ... more about Prism Elite 24CBE
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Slides 1 Length 24 ft 11 in Ext Width 7 ft 8 in Ext Height 10 ft 9 in Int Height 6 ft 9 in Exterior Color Crystal, Moonstone, Napa Valley GVWR 11030 lbs Fresh Water Capacity 29 gals Grey Water Capacity 32 gals Black Water Capacity 32 gals Fuel Type Diesel Engine 4-Cylinder High Output Chassis Mercedes-Benz Sprinter Horsepower 208 hp Fuel Capacity 24 gals Wheelbase 170 in Number Of Bunks 1 Available Beds Full Torque 322 ft-lb Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 70 lbs Water Heater Type Truma Aqua Go On Demand AC BTU 15000 btu Basement Storage 46 cu. ft. TV Info Coach TV Awning Info 14' Armless Gross Combined Weight 15250 lbs Shower Type Standard Similar Floorplans
-
Prism Elite 24DSE
Coachmen Prism Elite Class C diesel motorhome 24DSE highlights: 36" x 76" Bunk ... more about Prism Elite 24DSE
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Slides 2 Length 24 ft 11 in Ext Width 7 ft 8 in Ext Height 10 ft 9 in Int Height 6 ft 9 in Exterior Color Crystal, Moonstone, Napa Valley GVWR 11030 lbs Fresh Water Capacity 29 gals Grey Water Capacity 32 gals Black Water Capacity 35 gals Fuel Type Diesel Engine 4-Cylinder High Output Chassis Mercedes-Benz Sprinter Horsepower 208 hp Fuel Capacity 24 gals Wheelbase 170 in Number Of Bunks 1 Available Beds RV Queen Torque 322 ft-lb Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 70 lbs Water Heater Type Truma Aqua Go On Demand AC BTU 15000 btu Basement Storage 26 cu. ft. TV Info Coach TV Awning Info 14' Armless Gross Combined Weight 15250 lbs Shower Type Standard Similar Floorplans
Take a Virtual Tour
Prism Elite Features:
Standard Features

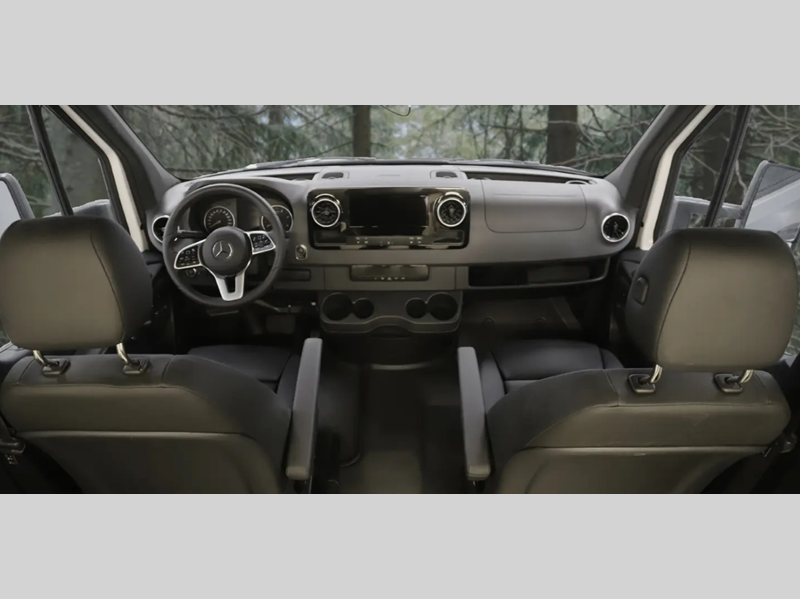

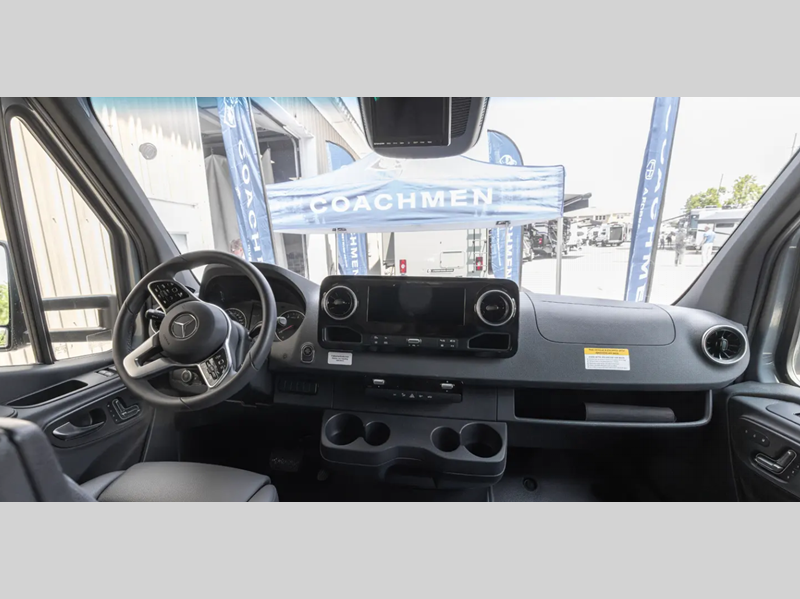

Mercedes-Benz® Sprinter Chassis
- 4-Cylinder Diesel High Output Engine
- 9G-TRONIC Automatic Transmission
- Horsepower: 208
- Rated Torque: 322 lb-ft
- Rear Wheel Drive
- Attention Assist
- Adaptive Cruise Control
- Lane Assist
- MBUX Multimedia System w/ Navigation
- Intelligent Voice Control System
- Apple Carplay & Android Auto
Interior
- Truma Aqua Go On Demand Water Heater

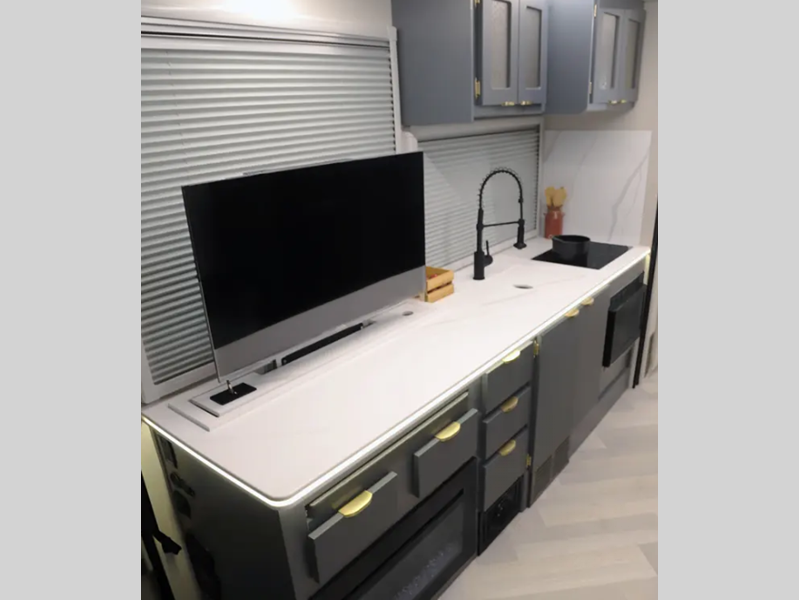

- Solid Surface Countertops

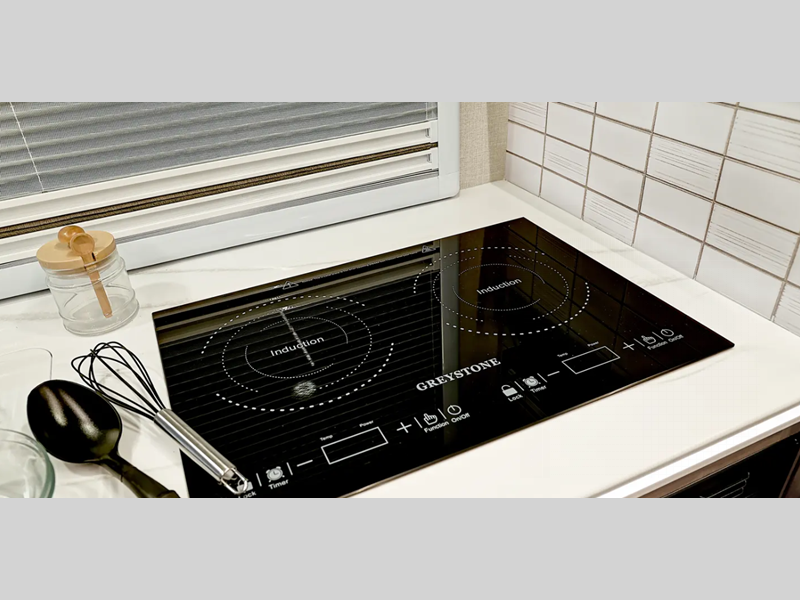

- 2-Burner Induction Cooktop
- Convection Microwave
- Large Closets

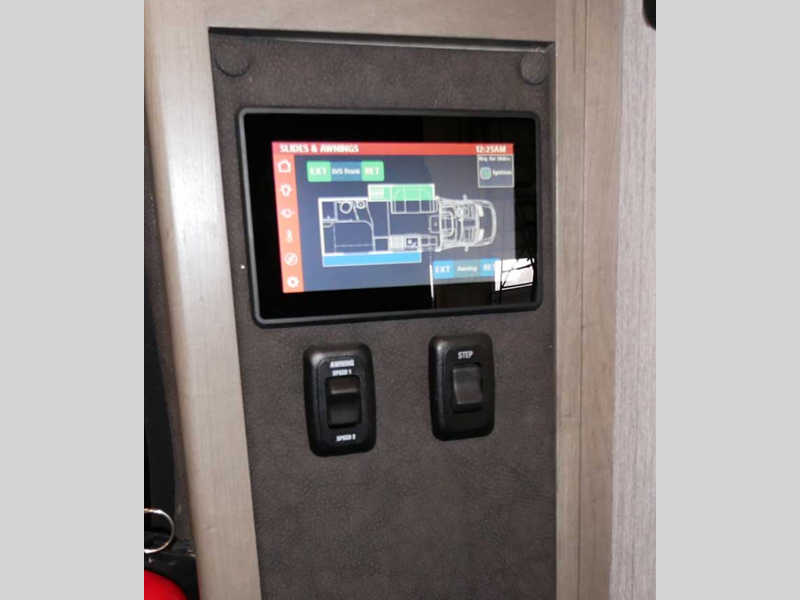

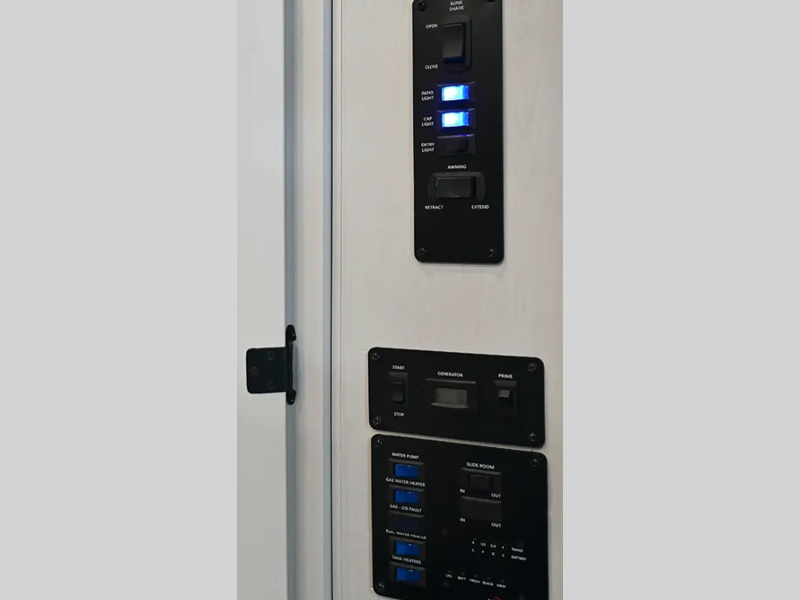

- Firefly Multiplex System
- Enlarged Molded Plastic Cabover Area
- Even Cool A/C Ducting System

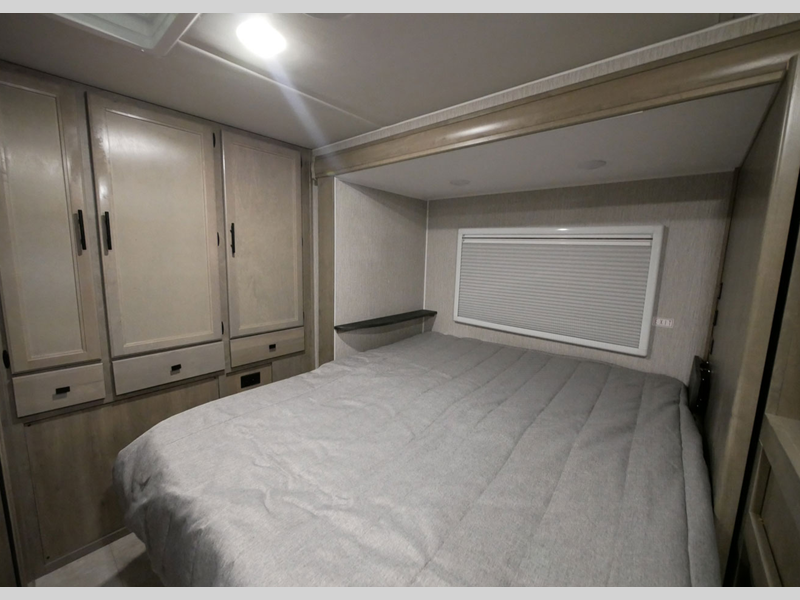

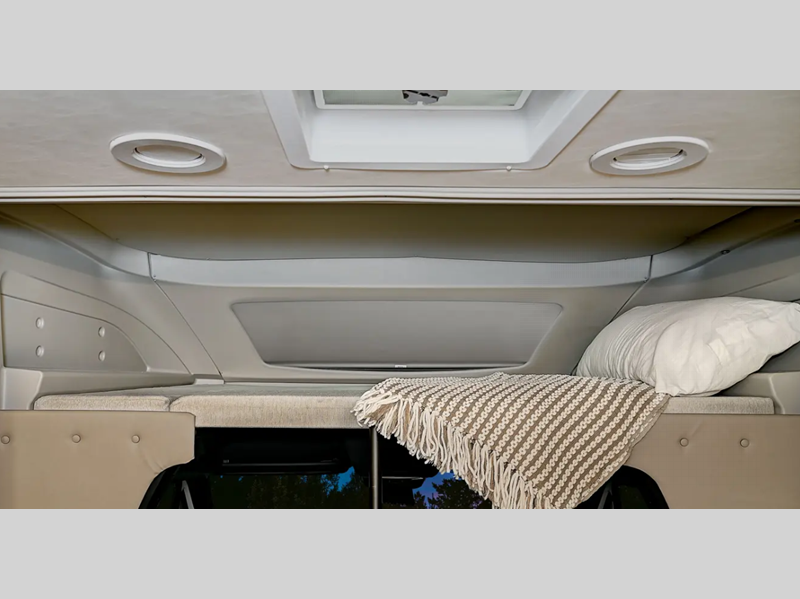

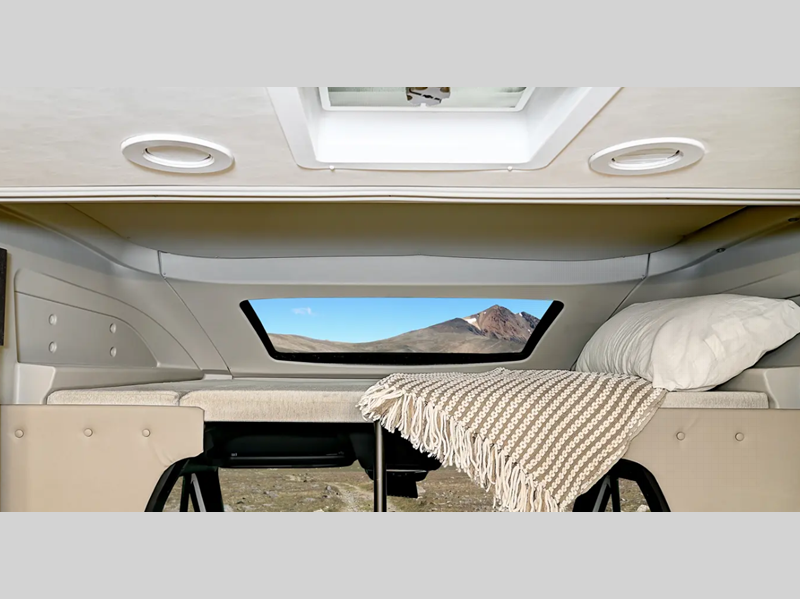

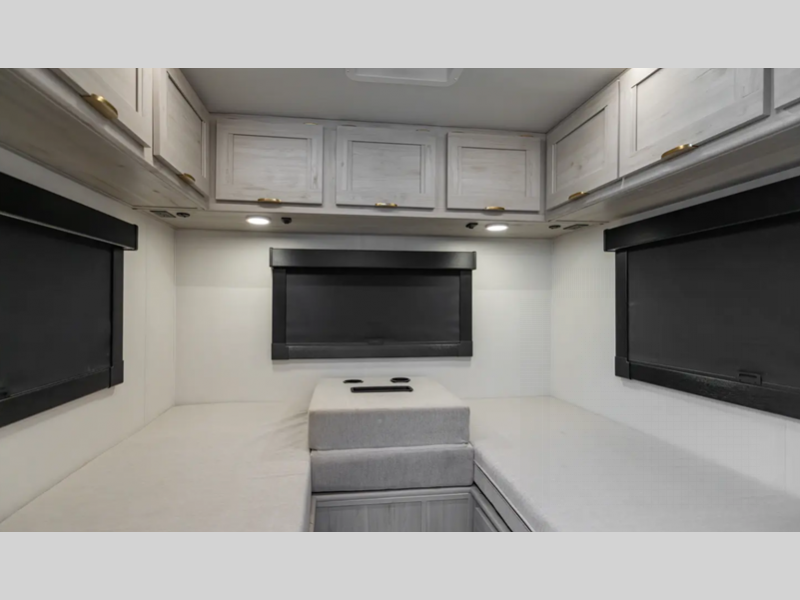

- Cabover Bunk
- Day/Night Window Shades
- Soft Touch Ceiling
- LED Batton Strip Lights
Exterior Features
- 2" Vacuum Bonded Laminated Sidewalls
- Lamilux 4000 Color-Infused Fiberglass
- Azdel SuperLite Substrate with Aluminum Framing
- CrossFlex Roof/Membrane
- Solar Prep
- Armless Awning
- Molded Fiberglass Front Cap w/Front Window
- Curved Wing Walls
- Rear Fiberglass Cap
- Integrated Fiberglass Running Boards
- Standard 15K BTU Low Profile A/C

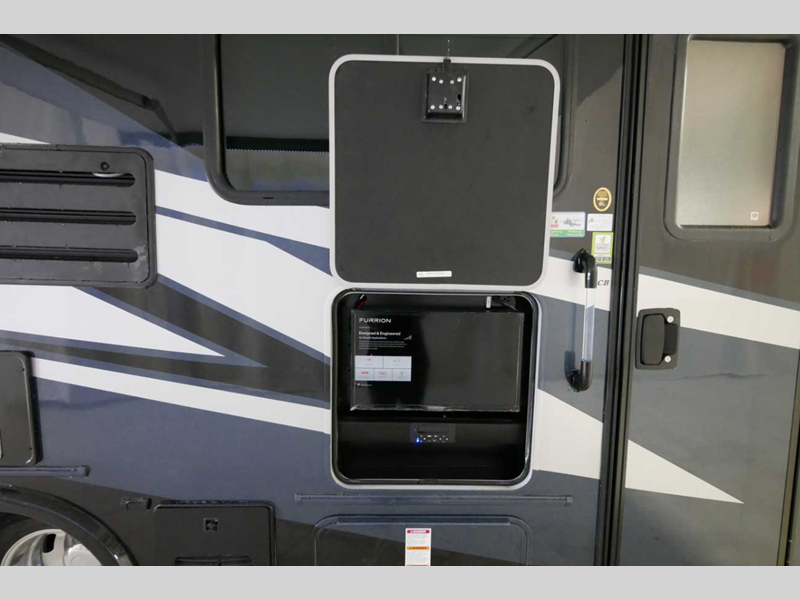

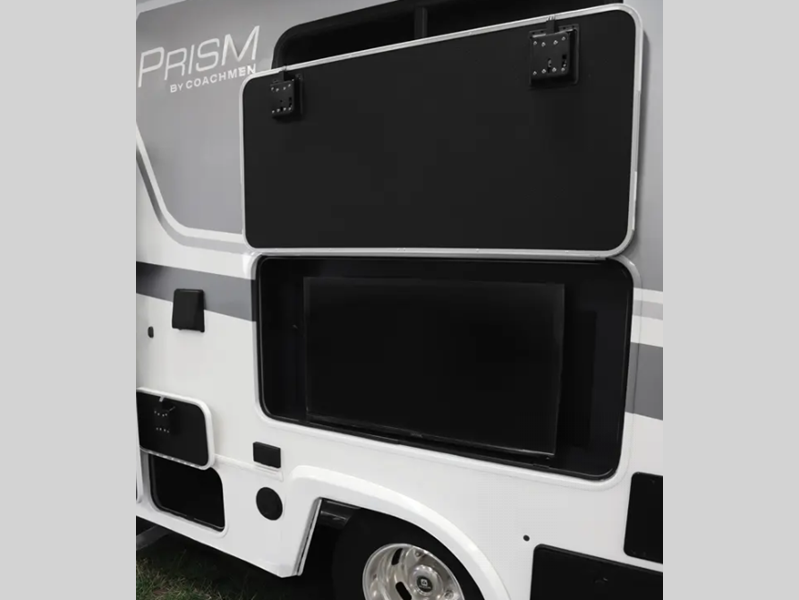

- Exterior Entertainment Center

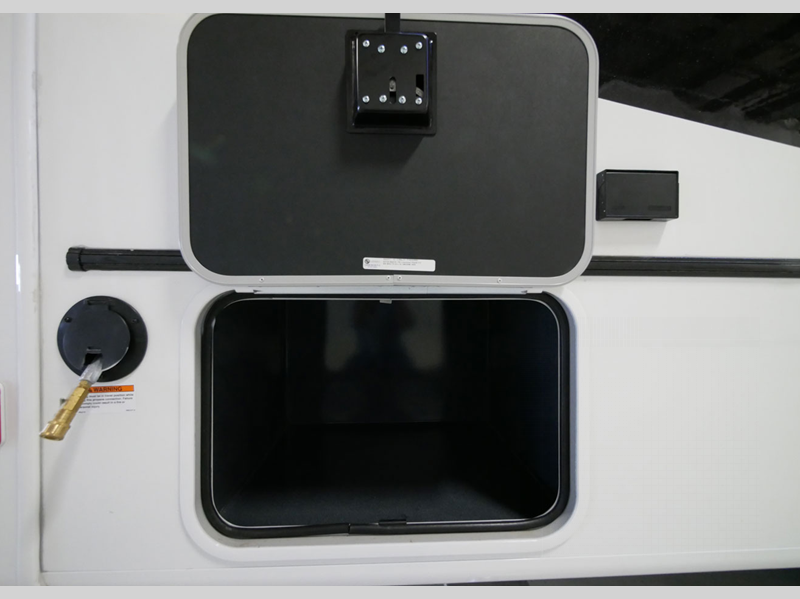

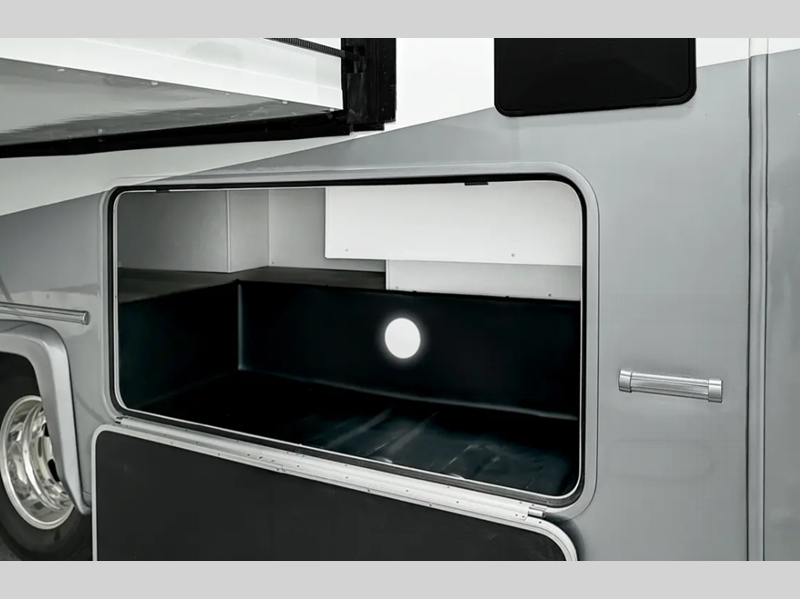

- Exterior Storage
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
