Fleetwood RV Insight Motor Home Class C - Diesel RVs For Sale

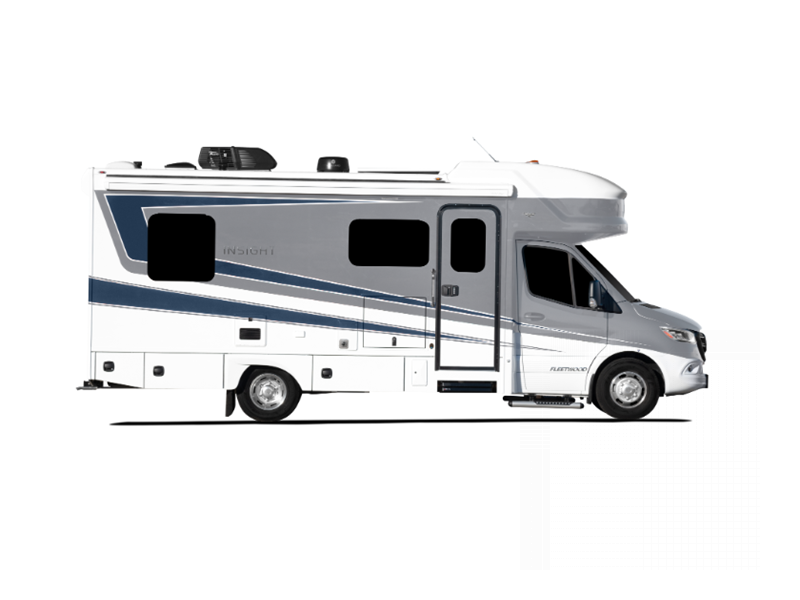

Take your journeys up a notch with the Insight Class C diesel motorhomes by Fleetwood RV! Each coach sits on the luxurious Mercedes-Benz sprinter chassis with a 2.0L turbo diesel engine for optimum performance and dependability!
Some of the features that will set the Insight apart are the solid surface countertops and solid hardwood cabinetry, custom full body paint, composite fiberglass sidewalls, and a Truma Aqua-Go water heater for performance you can trust. The rear and side view cameras plus swivel, power and heated seats will make the drive easier than ever. You'll also appreciate stainless steel panels that line the luggage door framing for added protection against corrosion and fiberglass roof material that is durable and sleek.
Choosing an Insight Class C diesel motorhome by Fleetwood RV may be the easiest thing you'll ever do!
-
Insight 25M
Fleetwood RV Insight Class C diesel motorhome 25M highlights: Large Slide Out ... more about Insight 25M
Specifications

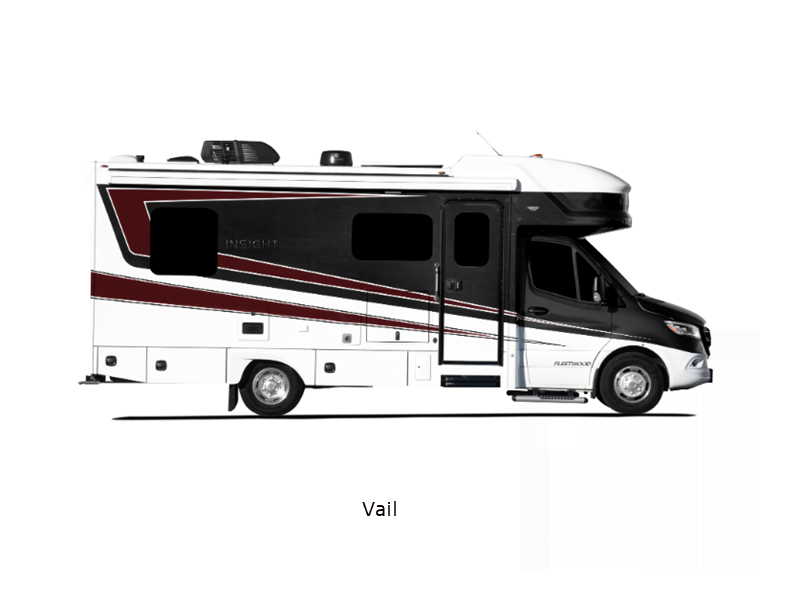

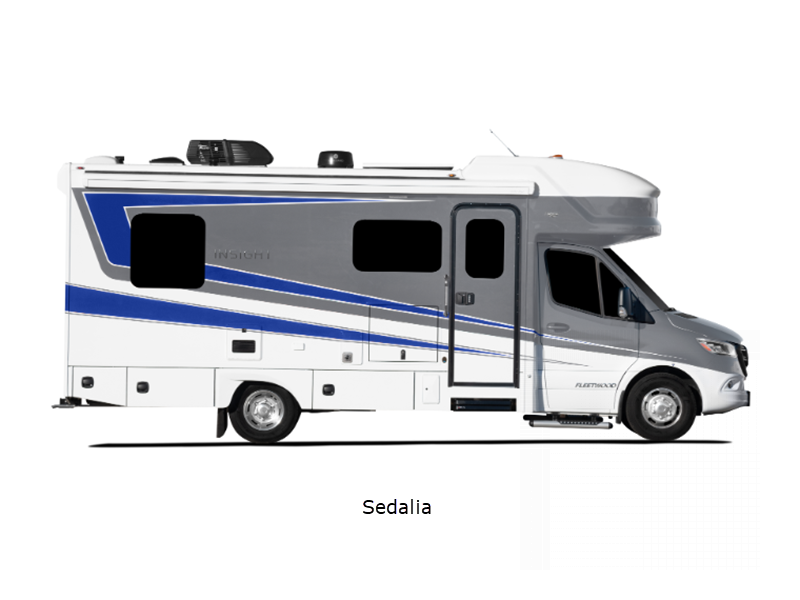

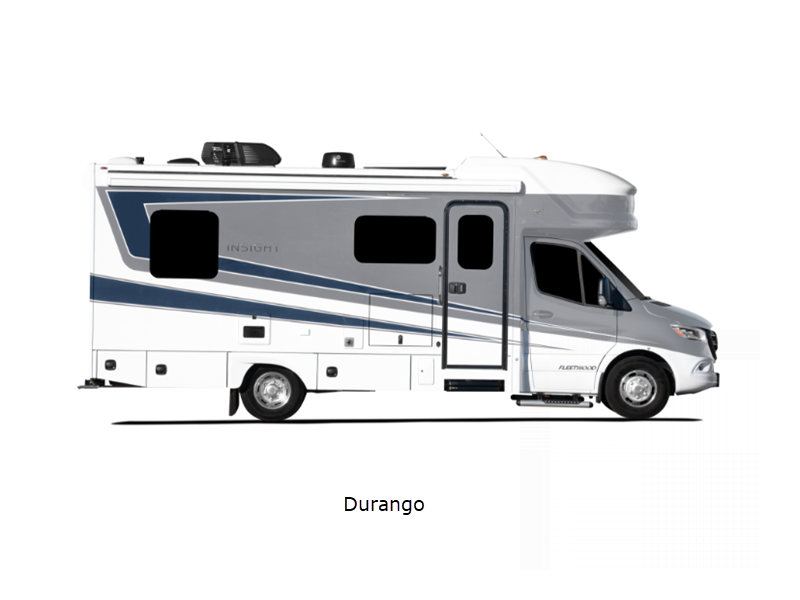

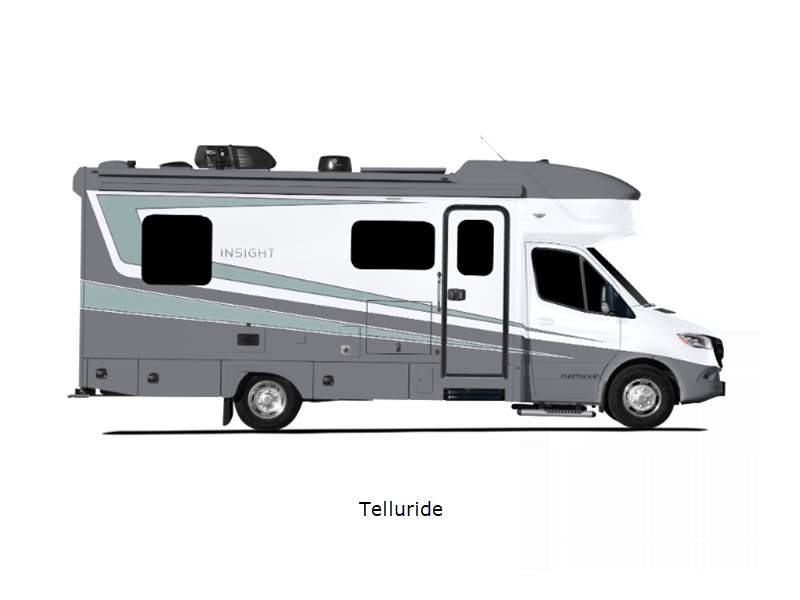

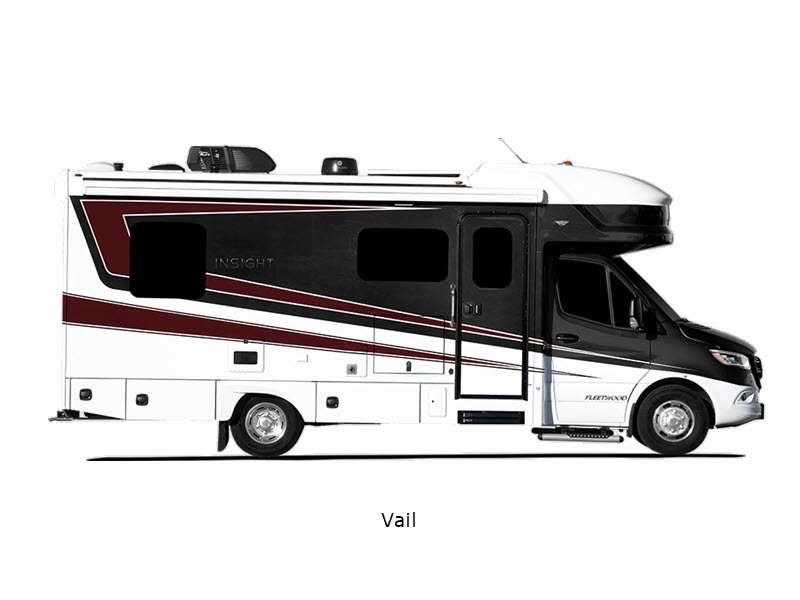

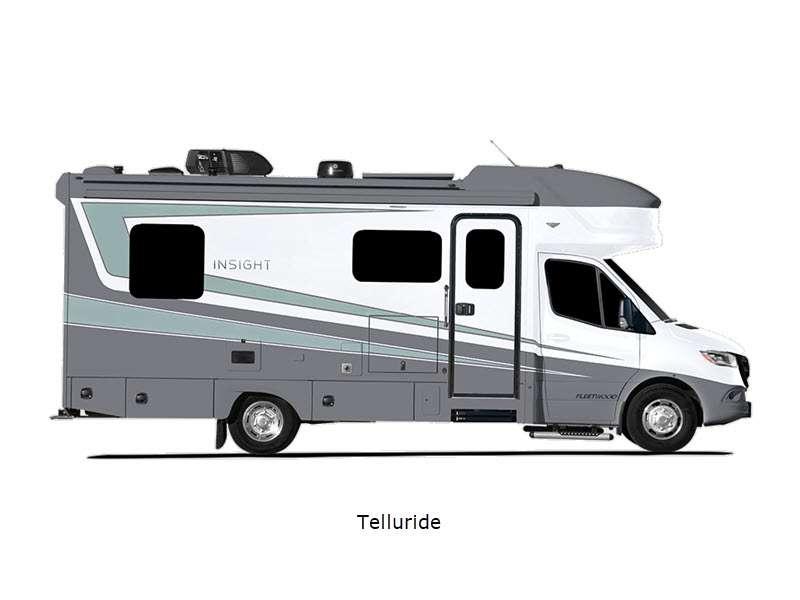

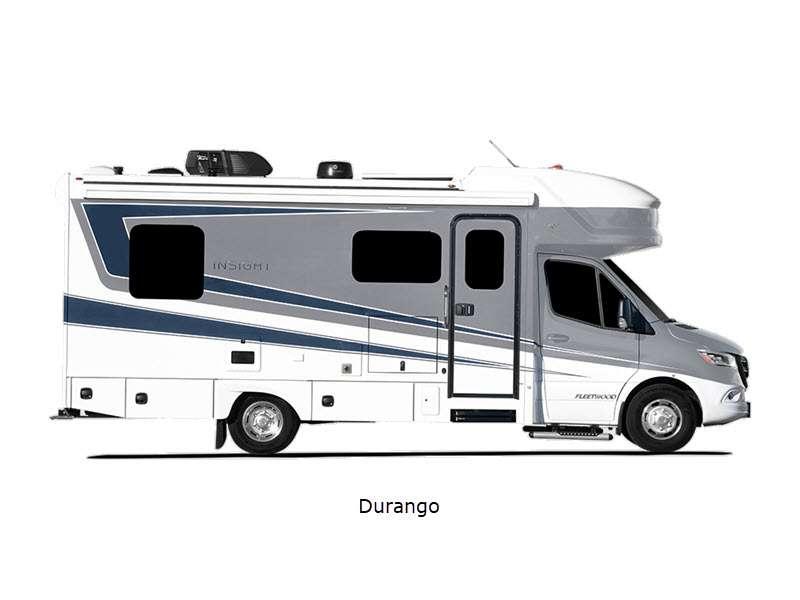

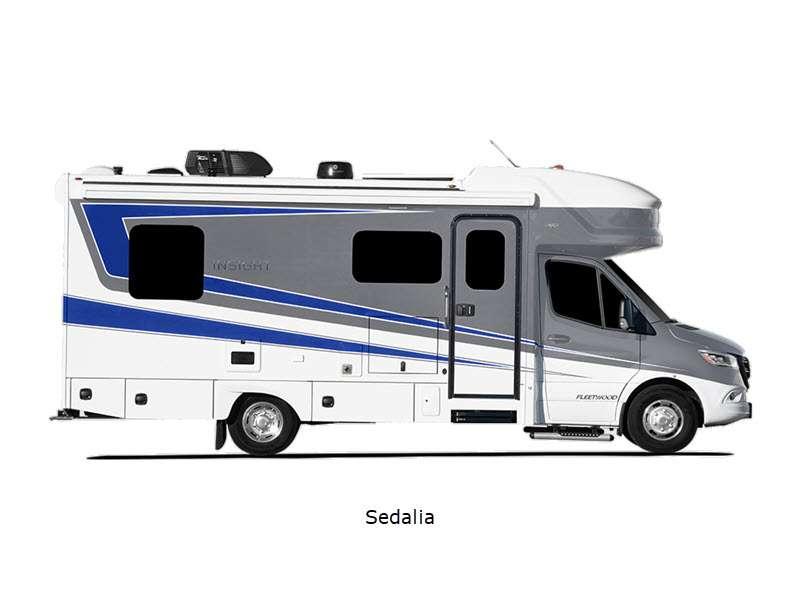

Sleeps 3 Slides 1 Length 25 ft 6 in Ext Width 7 ft 9 in Ext Height 11 ft Int Height 6 ft 8 in Interior Color Cottage, Mineral Exterior Color Full-Body Paint; Durango, Sedalia, Telluride, Vail Hitch Weight 4200 lbs GVWR 11030 lbs Fresh Water Capacity 34 gals Grey Water Capacity 29 gals Black Water Capacity 29 gals Furnace BTU 18000 btu Generator 3.6kW LP Fuel Type Diesel Engine 2.0L High Output Turbo Diesel 4-Cylinder Chassis Mercedes-Benz Sprinter 3500 Horsepower 211 hp Fuel Capacity 24.5 gals Wheelbase 170 in Available Beds Murphy Torque 332 ft-lb Refrigerator Type 12V Compressor Two Door Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 13.2 gals. Water Heater Type Truma Comfort plus Tankless AC BTU 13500 btu Basement Storage 42 cu. ft. TV Info LR LED TV Awning Info Power w/Wind Sensor and LED Lights Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Insight 25Q
Fleetwood RV Insight Class C diesel motorhome 25Q highlights: Full-Wall Slide ... more about Insight 25Q
Specifications
Sleeps 5 Slides 1 Length 25 ft 6 in Ext Width 7 ft 9 in Ext Height 11 ft Int Height 6 ft 8 in Interior Color Cottage, Mineral Exterior Color Full-Body Paint; Durango, Sedalia, Telluride, Vail Hitch Weight 4200 lbs GVWR 11030 lbs Fresh Water Capacity 34 gals Grey Water Capacity 29 gals Black Water Capacity 29 gals Furnace BTU 18000 btu Generator 3.6kW LP Fuel Type Diesel Engine 2.0L High Output Turbo Diesel 4-Cylinder Chassis Mercedes-Benz Sprinter 3500 Horsepower 211 hp Fuel Capacity 24.5 gals Wheelbase 170 in Number Of Bunks 1 Available Beds Queen Torque 332 ft-lb Refrigerator Type 12V Compressor Two Door Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 13.2 gals. Water Heater Type Truma Comfort plus Tankless AC BTU 13500 btu Basement Storage 42 cu. ft. TV Info LR LED TV Awning Info Power w/Wind Sensor and LED Lights Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Insight 25T
Fleetwood RV Insight Class C diesel motorhome 25T highlights: Rear Twin Beds ... more about Insight 25T
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Slides 1 Length 25 ft 6 in Ext Width 7 ft 9 in Ext Height 11 ft Int Height 6 ft 8 in Interior Color Cottage, Mineral Exterior Color Full-Body Paint; Durango, Sedalia, Telluride, Vail Hitch Weight 4200 lbs GVWR 11030 lbs Fresh Water Capacity 34 gals Grey Water Capacity 29 gals Black Water Capacity 29 gals Furnace BTU 18000 btu Generator 3.6kW LP Fuel Type Diesel Engine 2.0L High Output Turbo Diesel 4-Cylinder Chassis Mercedes-Benz Sprinter 3500 Horsepower 211 hp Fuel Capacity 24.5 gals Wheelbase 170 in Number Of Bunks 1 Available Beds Two Twin Beds Torque 332 ft-lb Refrigerator Type 12V Compressor Two Door Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 13.2 gals. Water Heater Type Truma Comfort plus Tankless AC BTU 13500 btu Basement Storage 42 cu. ft. TV Info LR LED TV, BR LED TV Awning Info Power w/Wind Sensor and LED Lights Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
Take a Virtual Tour
Insight Features:
Standard Features (2025)
Construction
- Vacuum Bonded Laminated Walls, Floor, Ceiling
- Preformed Metal Strap Tank Holders
- Exterior Walls resting on Floor - Not relying on screws
- Triple Slide Room Guides
- Non-Organic Floor Decking (Top &Bottom)
- Azdel Interior Wallboard
Exterior
- Four Point Hydraulic Levelers
- Aero Cap (Optional)
- Slide Out Topper Awning (where applicable)
- Frameless Windows
- Power Entry Step
- Keyless Entry
- Front and Rear Brow Fiberglass
- Full Body Paint
- Aluminum Wheels
- Side Swing Luggage Doors
- Lighted Grab Handle
- Patio Awning w/ Wind Sensor and LED Lights
Cab Exterior
- Rear and Side View Cameras
- Heated Exterior Mirrors
- Cab Exterior Steps
Interior
- Roller Shades and Valances
- Soft Touch Padded Ceiling
- Maple Hardwood Cabinetry
- LED Ceiling Lights
- Premium Linoleum Flooring
Electric and Utilities
- 30 Amp Service
- GFI Receptacles (Select Locations)
- LP Quick Disconnect
- Heated Holding Tanks (Black and Grey)
- (1) 200W Solar Panel
- 18,000 BTU Ducted Furnace
- Multiplex Control System w/ App Control
- 3.6KW LP Generator w/ Auto Gen Start
- Fresh Water Winterizing Filter Plug
- Winegard Connect 2.0
- Exterior Shower and Spigot
- 13,500 BTU A/C w/Heat pump
- Water Filtration System
- 2000W Pure Sine Inverter
- Cable/Sat System Ready
- (2) House AGM Batts

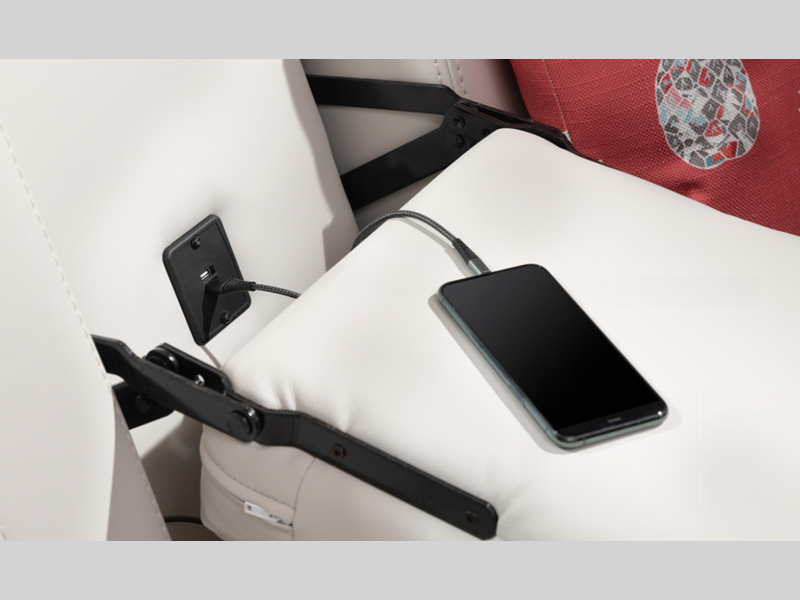

- USB Charging in Living Area and Bedroom

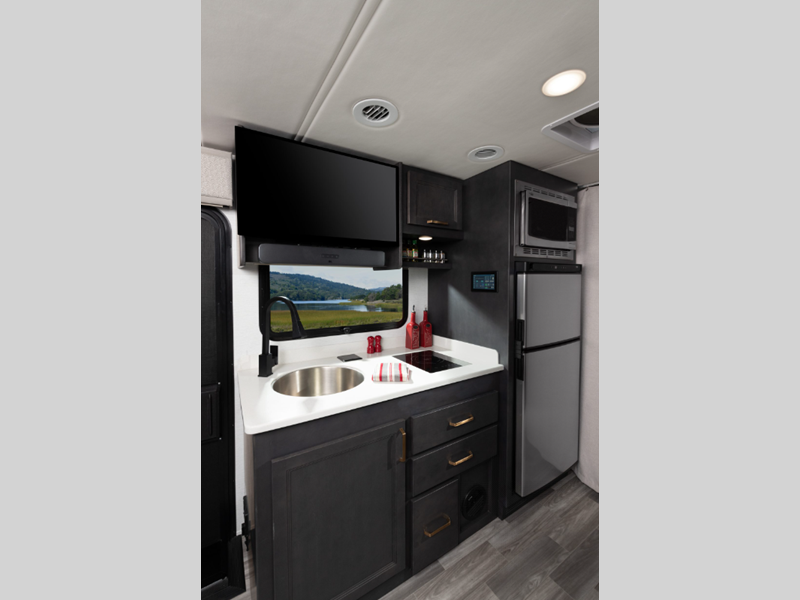

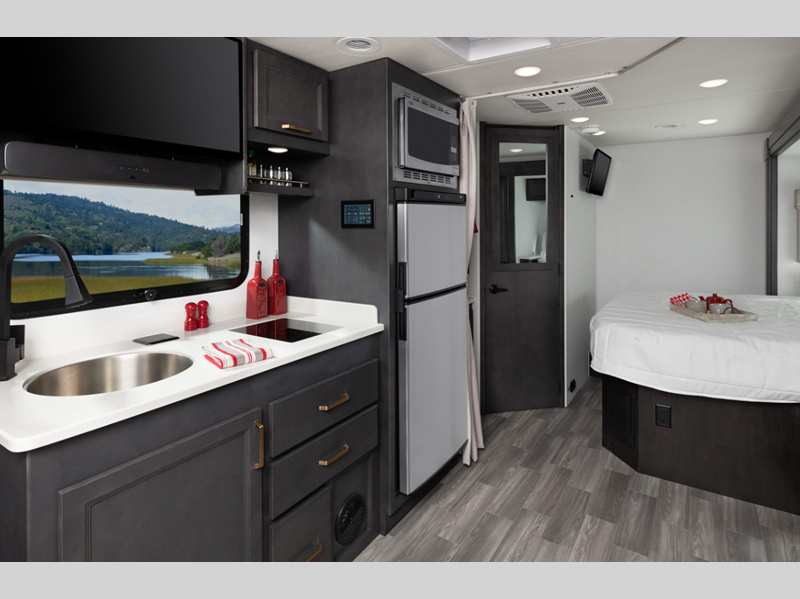

Kitchen
- Single Bowl Undermount SS Sink w/Cover
- Solid Surface Countertops
- 2 Burner Gas Flush Mount Cooktop w/Cover

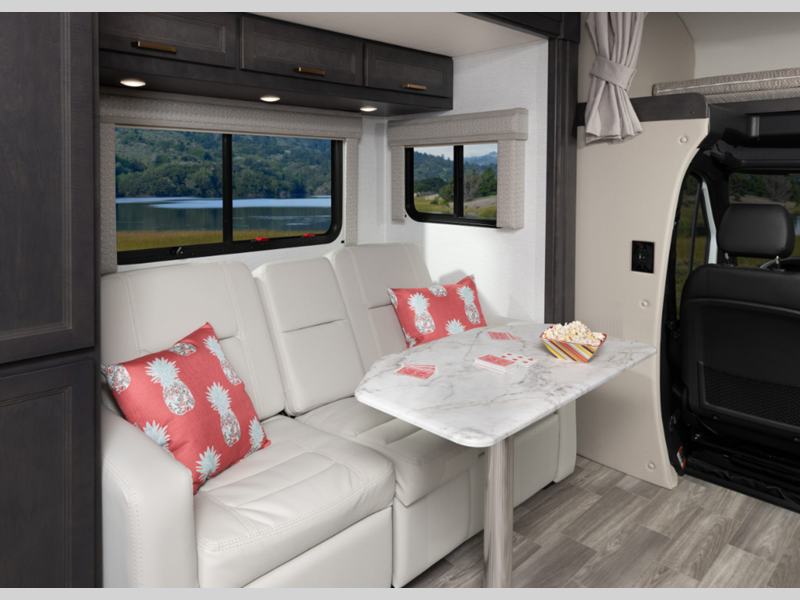

- Booth Dinette (N/A TBD, TB4)
- 8.0 Cu. Ft. 12V Compressor 2 Door Refrigerator
- 1.0 Cu. Ft. Convection Microwave Oven
- Deluxe Power Vent w/Rain Sensors
Bathroom

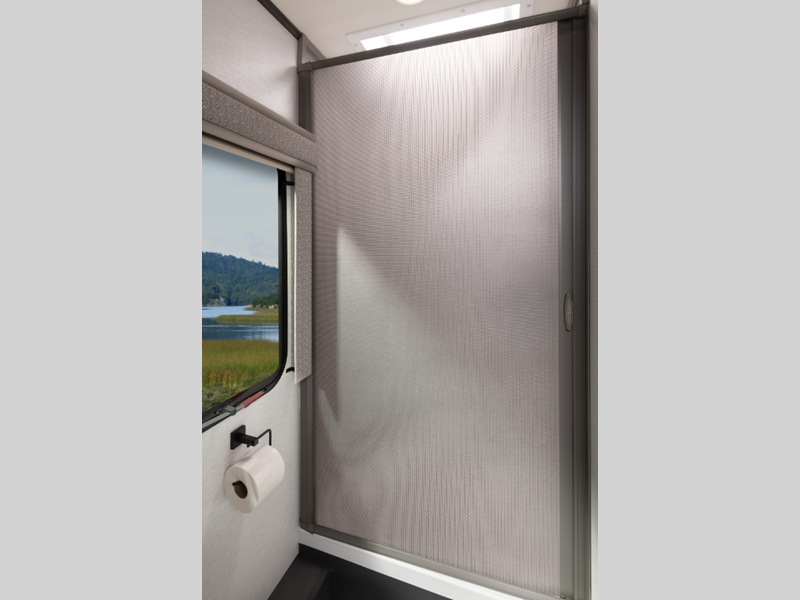

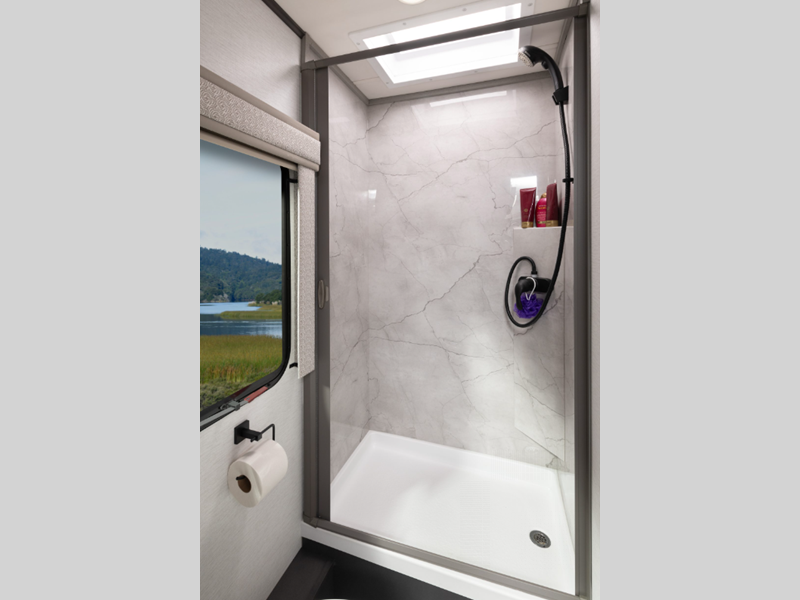

- Shower w/Scroll Door
- Deluxe Power Vents w/Rain Sensors
- Porcelain Macerator Toilet (N/A on RMC, RML)
- Skylight over Shower
- Integrated Sink
Entertainment
- LED TV in Living Area

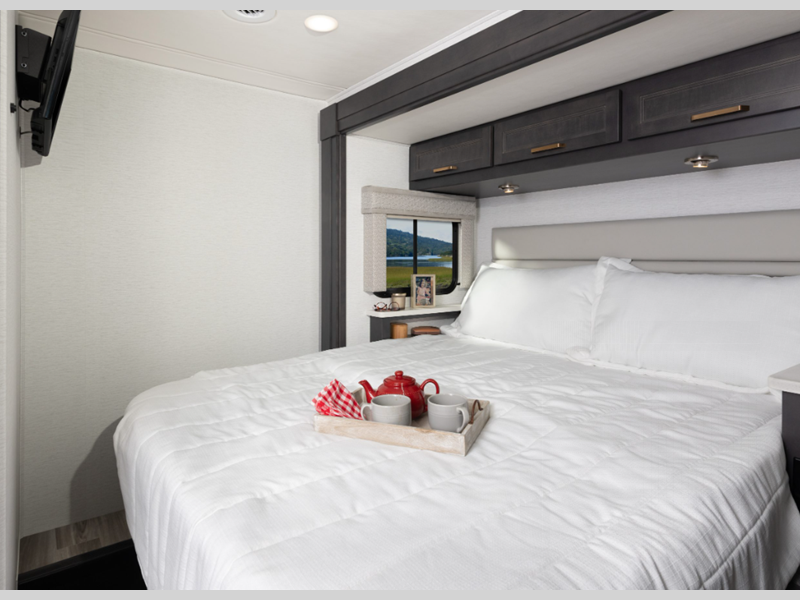

- LED TV in Bedroom (N/A RMC, RML)
Cab Interior
- Removable Cab Carpet and Privacy Shade
- Upgraded Acoustic Package
- Cab Courtesy Dome Light
- Wireless Charging Capabilities

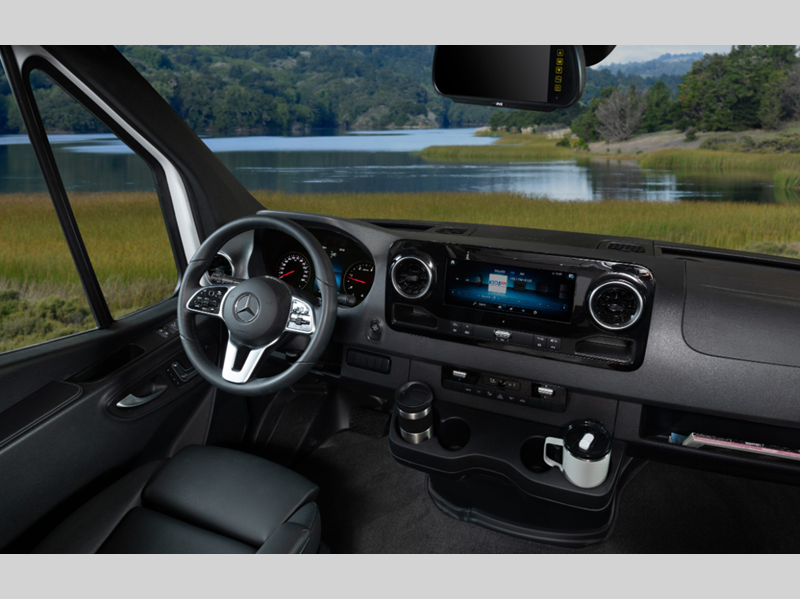

- MBUX Multimedia System w/10.25" Touchscreen
- Sat/Nav Radio & 3 yr Map Updates
- Leather Steering Wheel
- Instrument Cluster w/Color Display

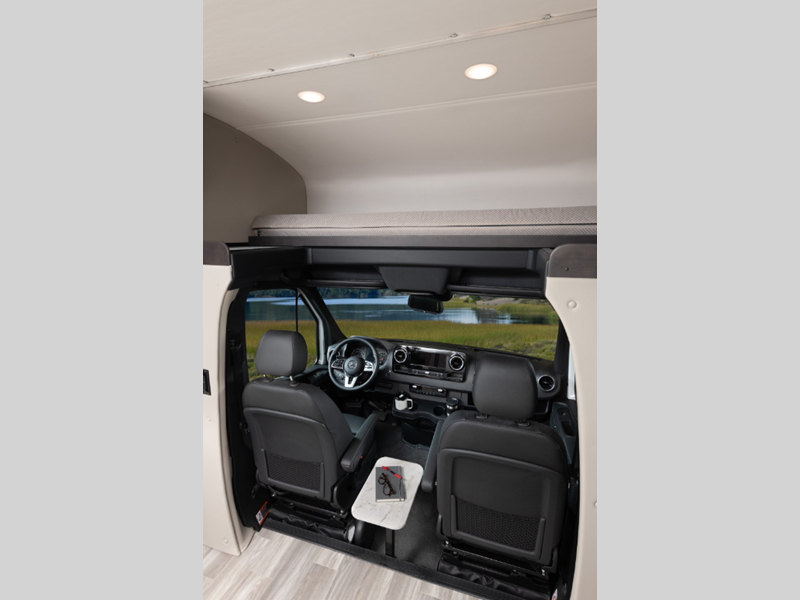

- Swivel, Power and Heated Seats
- Multifunction Steering Wheel
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Manu-Facts:
Fleetwood is one of the oldest names in the RV industry. We’ve been around for over 65 years—more than double most of our competition. And that resilience speaks to our product. After all, a company can’t stay in business if they build something people don’t believe in.
Inherently motorhomes are just that—a little bit vehicle, a little bit house. So at Fleetwood, we engineer and build them with both in mind. Our innovation shows we perfectly balance and blend the two. And that smarter design means a better RV.
