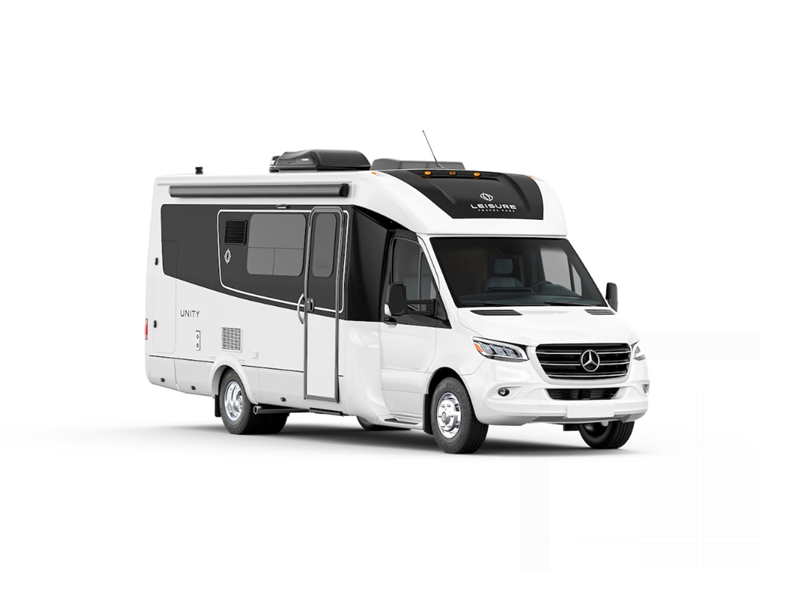

Leisure Travel Unity Motor Home Class B+ - Diesel RVs For Sale
Compact luxury is found with the Unity Class B+ diesel motorhomes by Leisure Travel. You will love the innovative use of space found throughout this coach, as well as flexible living spaces, and stunning upgraded decor and cabinetry options.
There are six versatile floorplans to choose from, all including dry baths, fully-equipped kitchens to prepare meals each day, and comfortable sleeping arrangements. Each model sits on the durable and luxurious Mercedes-Benz Sprinter 3500 dual rear wheel chassis for the ultimate driving experience, plus there are power/heated Ultraleather cab seats for even more comfort. And since Leisure Travel is celebrating 60 years of innovation, you can add the optional 60th Anniversary Edition with sleek a Diamond White exterior and modern interior finishes!
Escape the ordinary for the traveling lifestyle with the Unity Class B+ diesel motorhomes by Leisure Travel!
-

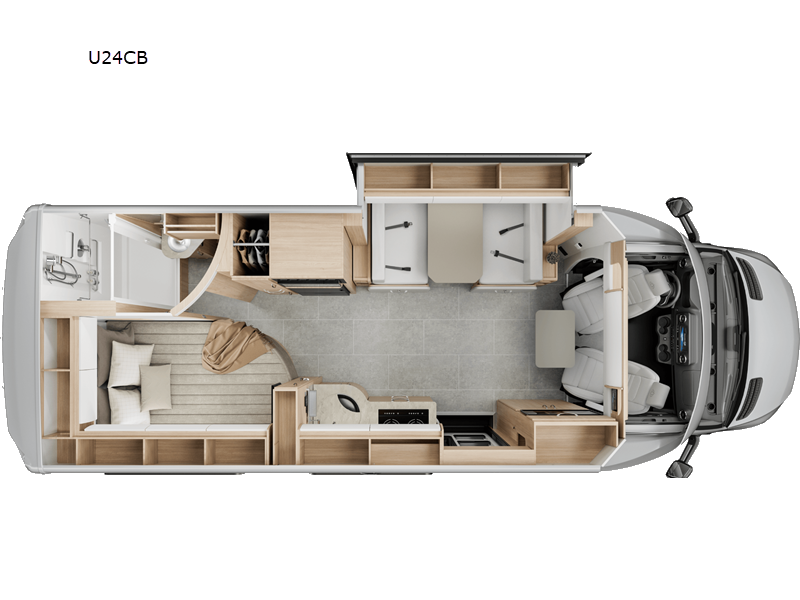

Unity U24CB
Leisure Travel Unity Class B+ diesel motorhome U24CB highlights: Convection ... more about Unity U24CB
Featured U24CB
Specifications

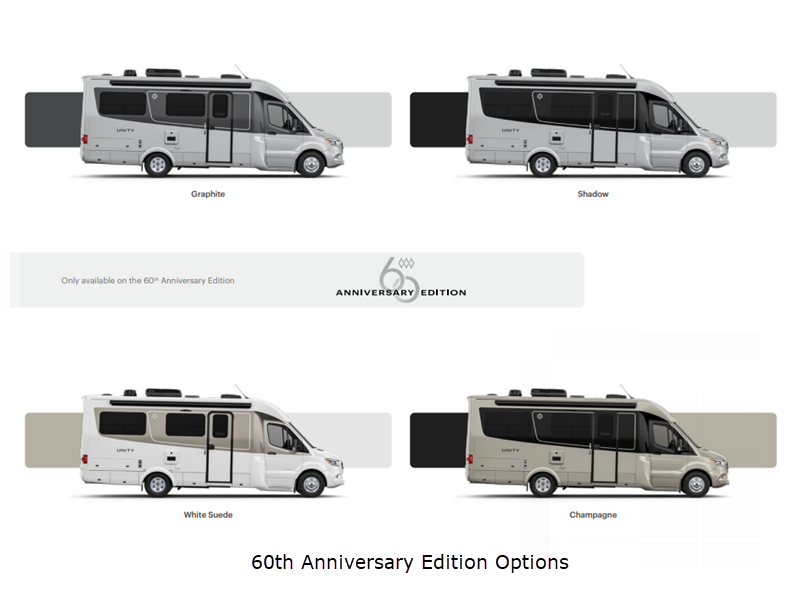

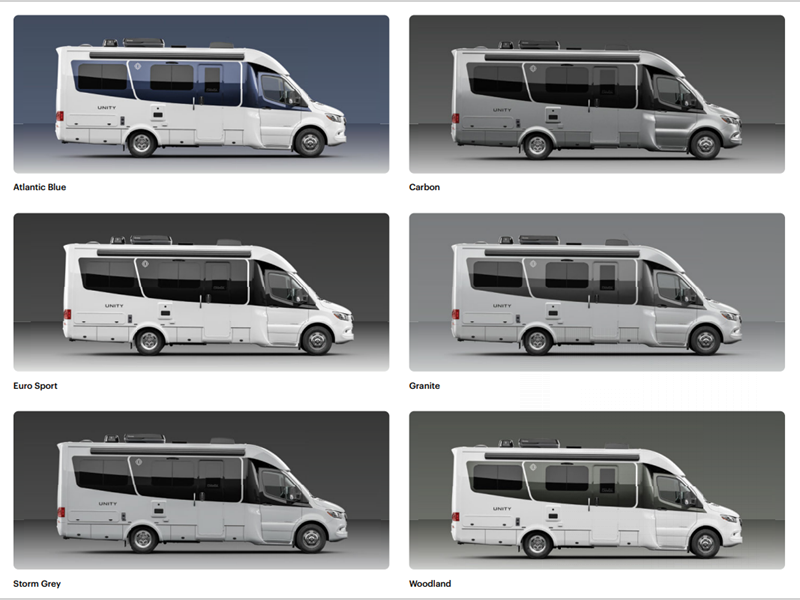

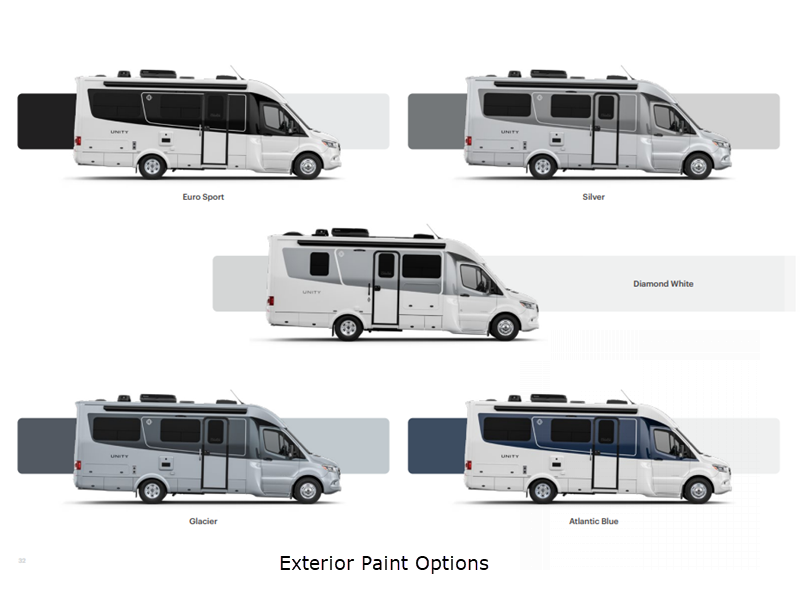

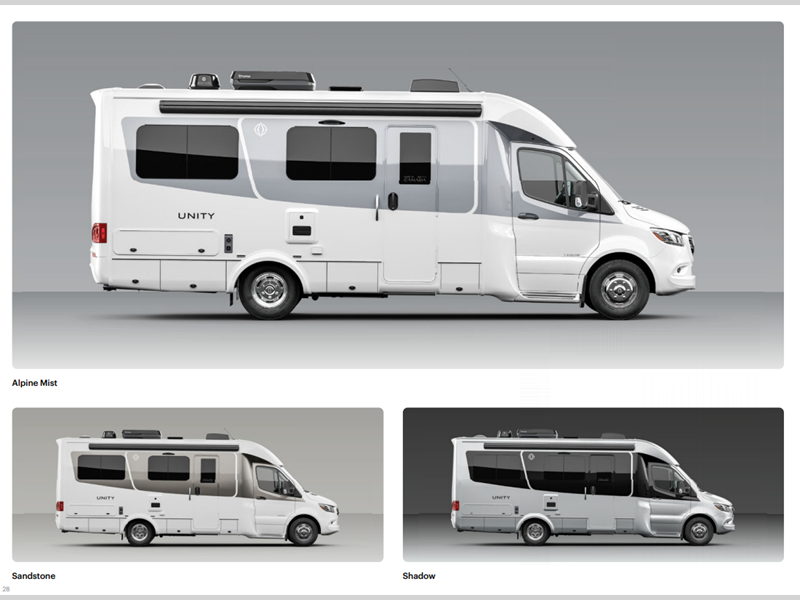

Sleeps 4 Slides 1 Length 25 ft 1 in Ext Width 7 ft 11 in Ext Height 10 ft 6 in Int Height 6 ft 5 in Interior Color Dove, Sand, Clay Exterior Color Euro Sport, Silver, Graphite, Shadow, Glacier, Atlantic Blue, White Suede, Champagne GVWR 11030 lbs Fresh Water Capacity 36.5 gals Grey Water Capacity 35 gals Black Water Capacity 30.6 gals Furnace BTU 19000 btu Fuel Type Diesel Engine 2.0-L Turbocharged I-4 Diesel Chassis Mercedes-Benz Sprinter 3500 Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 170 in Available Beds Full Torque 332 ft-lb Refrigerator Type 12V Compressor Refrigerator w/Bottom Freezer Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 LP Tank Capacity 15.8 gals Water Heater Type Truma AquaGo Comfort Plus AC BTU 13500 btu Basement Storage 33 cu. ft. TV Info LR 27" TV, BR 24" TV Awning Info Powered Legless Box w/Wind Sensor and LED Lights Shower Type Standard -
Unity U24FX
Leisure Travel Unity Class B+ diesel motorhome U24FX highlights: Murphy Bed ... more about Unity U24FX
Featured U24FX
Specifications
Sleeps 3 Slides 1 Length 25 ft 1 in Ext Width 7 ft 11 in Ext Height 10 ft 6 in Int Height 6 ft 5 in Interior Color Dove, Sand, Clay Exterior Color Euro Sport, Silver, Graphite, Shadow, Glacier, Atlantic Blue, White Suede, Champagne GVWR 11030 lbs Fresh Water Capacity 25.6 gals Grey Water Capacity 35 gals Black Water Capacity 30.6 gals Furnace BTU 19000 btu Fuel Type Diesel Engine 2.0-L Turbocharged I-4 Diesel Chassis Mercedes-Benz Sprinter 3500 Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 170 in Available Beds Murphy Torque 332 ft-lb Refrigerator Type 12V Compressor Refrigerator w/Bottom Freezer Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 LP Tank Capacity 15.8 gals Water Heater Type Truma AquaGo Comfort Plus AC BTU 13500 btu Basement Storage 29 cu. ft. TV Info LR 27" TV, LR 24" TV Awning Info Powered Legless Box w/Wind Sensor and LED Ligts Shower Type Standard Similar Floorplans
-
Unity U24MB
Leisure Travel Unity Class B+ diesel motorhome U24MB highlights: Swivel Cab ... more about Unity U24MB
Specifications
Sleeps 2 Slides 1 Length 25 ft 1 in Ext Width 7 ft 11 in Ext Height 10 ft 6 in Int Height 6 ft 5 in Interior Color Dove, Sand, Clay Exterior Color Euro Sport, Silver, Graphite, Shadow, Glacier, Atlantic Blue, White Suede, Champagne GVWR 11030 lbs Fresh Water Capacity 25.6 gals Grey Water Capacity 35 gals Black Water Capacity 30.6 gals Furnace BTU 19000 btu Fuel Type Diesel Engine 2.0-L Turbocharged I-4 Diesel Chassis Mercedes-Benz Sprinter 3500 Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 170 in Available Beds Murphy Torque 332 ft-lb Refrigerator Type 12V Compressor Refrigerator w/Bottom Freezer Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 LP Tank Capacity 15.8 gals Water Heater Type Truma AquaGo Comfort Plus AC BTU 13500 btu Basement Storage 45 cu. ft. TV Info Coach 40" Smart TV with Lift Awning Info Powered Legless Box w/Wind Sensor and LED Ligts Shower Type Radius Similar Floorplans
-
Unity U24MBL
Leisure Travel Unity Class B+ diesel motorhome U24MBL highlights: Murphy ... more about Unity U24MBL
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Slides 1 Length 25 ft 1 in Ext Width 7 ft 11 in Ext Height 10 ft 6 in Int Height 6 ft 5 in Interior Color Dove, Sand, Clay Exterior Color Euro Sport, Silver, Graphite, Shadow, Glacier, Atlantic Blue, White Suede, Champagne GVWR 11030 lbs Fresh Water Capacity 25.6 gals Grey Water Capacity 35 gals Black Water Capacity 30.6 gals Furnace BTU 19000 btu Engine 2.0-L Turbocharged I-4 Diesel Chassis Mercedes-Benz Sprinter 3500 Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 170 in Available Beds Murphy Torque 332 ft-lb Refrigerator Type 12V Compressor Refrigerator w/Bottom Freezer LP Tank Capacity 15.8 gals. Water Heater Type Truma AquaGo Comfort Plus AC BTU 13500 btu Basement Storage 45 cu. ft. TV Info LR 40" Smart TV with Lift Awning Info Powered Legless Box w/Wind Sensor & LED Lights Shower Type Radius Similar Floorplans
-

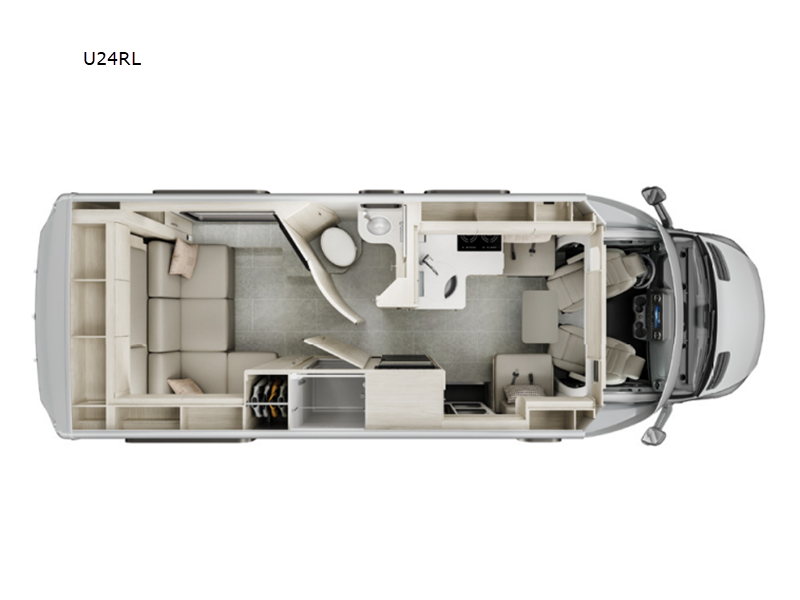

Unity U24RL
The Leisure Travel Unity class B+ diesel motorhome U24RL highlights: Rear Lounge ... more about Unity U24RL
Have a question about this floorplan? Contact Us
Specifications
Sleeps 3 Length 25 ft 1 in Ext Width 7 ft 11 in Ext Height 10 ft 6 in Int Height 6 ft 5 in Interior Color Dove, Sand, Clay Exterior Color Euro Sport, Silver, Graphite, Shadow, Glacier, Atlantic Blue, White Suede, Champagne GVWR 11030 lbs Fresh Water Capacity 25.6 gals Grey Water Capacity 35 gals Black Water Capacity 30.6 gals Furnace BTU 19000 btu Fuel Type Diesel Engine 2.0-L Turbocharged I-4 Diesel Chassis Mercedes-Benz Sprinter 3500 Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 170 in Available Beds Murphy Torque 332 ft-lb Refrigerator Type 12V Compressor Refrigerator w/Bottom Freezer Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 LP Tank Capacity 15.8 gals Water Heater Type Truma AquaGo Comfort Plus AC BTU 13500 btu Basement Storage 26 cu. ft. TV Info LR 32" Smart TV, BR 27" TV Awning Info Powered Legless Box w/Wind Sensor and LED Ligts Shower Type Standard Similar Floorplans
-
Unity U24TB
Leisure Travel Unity Class B+ diesel motorhome U24TB highlights: Convertible ... more about Unity U24TB
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Length 25 ft 1 in Ext Width 7 ft 11 in Ext Height 10 ft 6 in Int Height 6 ft 5 in Interior Color Dove, Sand, Clay Exterior Color Euro Sport, Silver, Graphite, Shadow, Glacier, Atlantic Blue, White Suede, Champagne GVWR 11030 lbs Fresh Water Capacity 36.5 gals Grey Water Capacity 35 gals Black Water Capacity 30.6 gals Furnace BTU 19000 btu Fuel Type Diesel Engine 2.0-L Turbocharged I-4 Diesel Chassis Mercedes-Benz Sprinter 3500 Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 170 in Available Beds Two Twin Torque 332 ft-lb Refrigerator Type 12V Compressor Refrigerator w/Bottom Freezer Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 LP Tank Capacity 15.8 gals Water Heater Type Truma AquaGo Comfort Plus AC BTU 13500 btu Basement Storage 60 cu. ft. TV Info LR 27" TV, BR 24" TV Awning Info Powered Legless Box w/Wind Sensor and LED Ligts Shower Type Standard Similar Floorplans
Take a Virtual Tour
Unity Features:
Standard Features
Chassis
- Mercedes-Benz Sprinter 3500 Dual Rear Wheel Chassis (170'' Wheelbase, 11,030 lb GVWR), 2.0-L Turbocharged I-4 Diesel (208 hp, 332 ft·lb Torque) with 9G-Tronic Auto Transmission
- Adaptive Cruise Control
- Air Conditioning
- Alternator – 250 A
- Chrome Grille
- Concealed Locking Fuel Filler
- Digital Rear View Mirror
- Driver and Passenger Exterior Courtesy Light
- Driving Assist Package with Rain Sensing Wiper Assist, Active Braking Assist, Lane Keeping Assist, Traffic Sign Assist
- Electronic Stability Control
- Integrated Fog Lamps with Cornering Light Function
- Leather-Wrapped Multifunctional Steering Wheel with Tilt/Telescopic Function
- LED Headlamps with High Beam Assist
- MBUX Touchscreen Multimedia Center with AM/FM, Navigation, Voice Control, Smart Phone Integration, and Rear-View Camera
- Power Windows and Door Locks
- Power/Heated Exterior Mirrors with Convex and Turn Signal

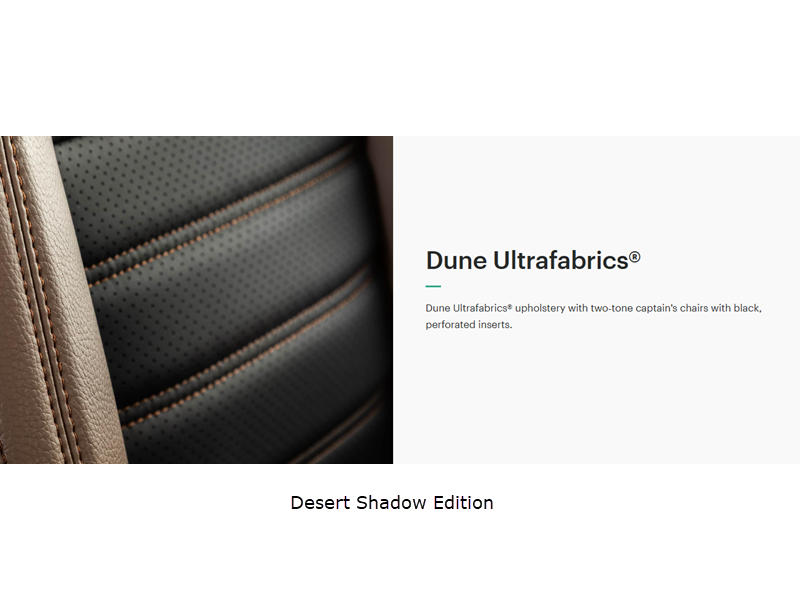

- Power/Heated Ultrafabrics® Cab Seats with Armrests, Adjustable Lumbar Support, Recline, and Swivel Bases
- Privacy Drape in Cab
- Rear Hitch Receiver with 7-Pin Connector
- Removable Rubber Floor Mat
- Wheel Simulators
Vehicular
- Chassis Battery Disconnect
- Powder Coated Steel Undercarriage Support Structure
Construction
- Dinette Slide out (MB, FX, CB)
- Frameless Tinted All Glass Awning-Style Windows
- Vacuum Bonded Aluminum-Framed Insulated Contoured Sidewalls with Fiberglass Exterior
- Vacuum Bonded Aluminum-Framed Insulated Domed Roof with Fiberglass Exterior
- Vacuum Bonded Steel-Framed Insulated Floor with Composite Exterior
Exterior

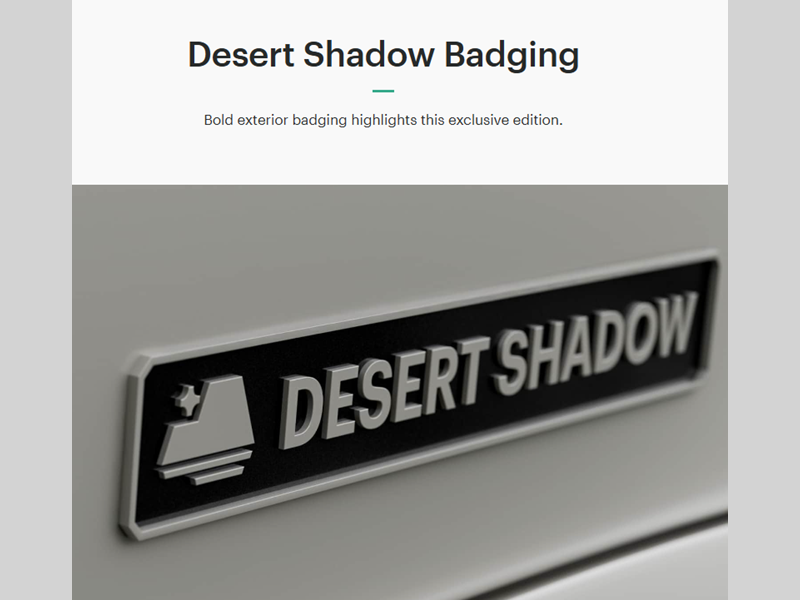

- Chrome Automotive Style “LTV” Branding
- Contoured Entrance Door with Screen Door and Window
- Contoured Fiberglass Baggage Doors with Top Continuous Hinge and Draw Tight Latches
- Illuminated Assist Handle

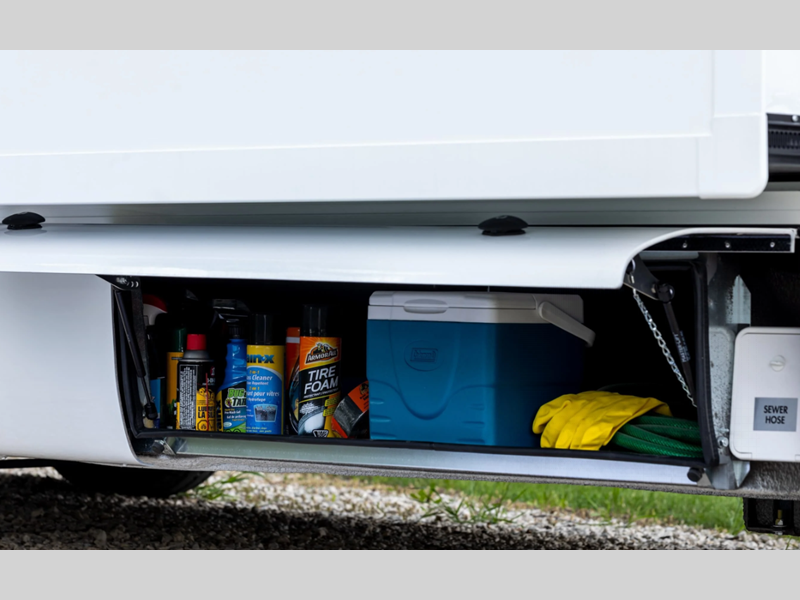

- Large Exterior Storage Compartment with Lights (MBL, MB)
- Large Pass Through Exterior Storage Compartment with Light (TB)
- LED Patio Light
- Painted Color Matched Front Bumper
- Painted Fiberglass Running Boards and Flares
- Painted Full Body with Clear Coat
- Powered Retractable Entrance Step
- Water Pump Switch in Utility Center
Interior
- Coach Floor Extension
- Curved Soft Close Overhead Cabinetry Doors with Hidden Catch
- Day/Night Roller Shades
- Dry Chemical Fire Extinguisher
- Full Extension Ball Bearing Soft Close Drawer Tracks
- Illuminated Assist Handle
- LED Above Cabinet Hidden Accent Lighting with Dimmer
- LED Ceiling Light Panels with Dimmer in Bedroom and Living Areas
- LED Recessed Strip Lighting Under Overhead Cabinets with Dimmer
- Opening Skylight with Screen and Shade
- Smoke, LP and CO Detectors
- Soft Vinyl Ceiling Headliner
- Tile Look Vinyl Flooring Throughout
- Ultraleather® Wrapped Valances (MB, FX, CB, TB, IB)

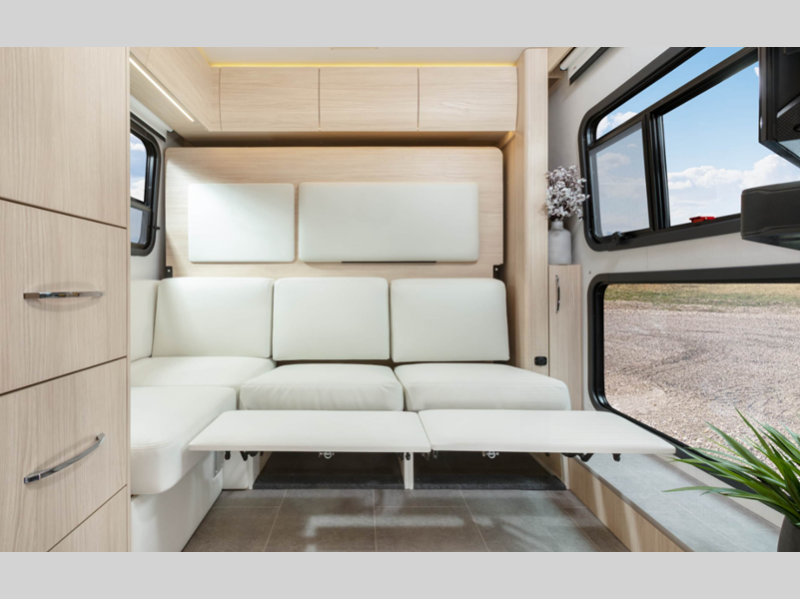

Furniture
- Ultraleather Booth Dinette with Easy-Lift Table (CB)
- Ultraleather® Leisure Lounge Express Dinette (RL, TB)

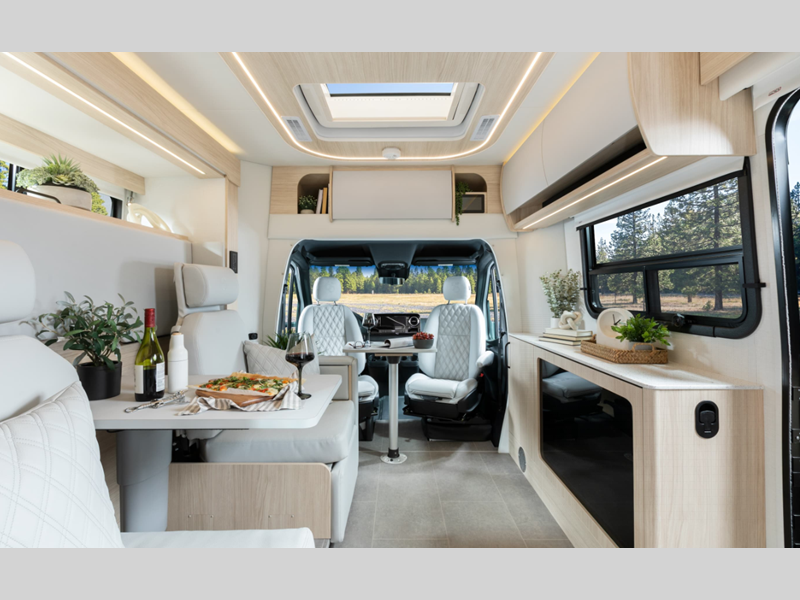

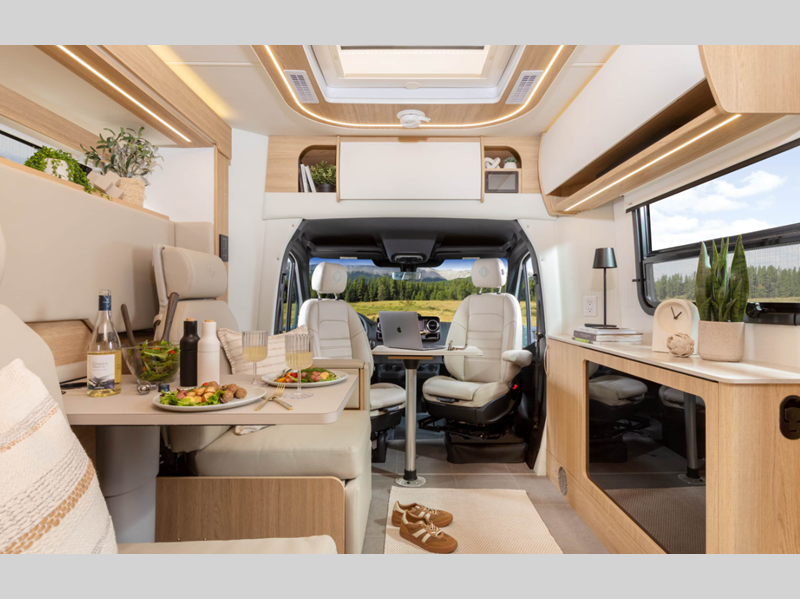

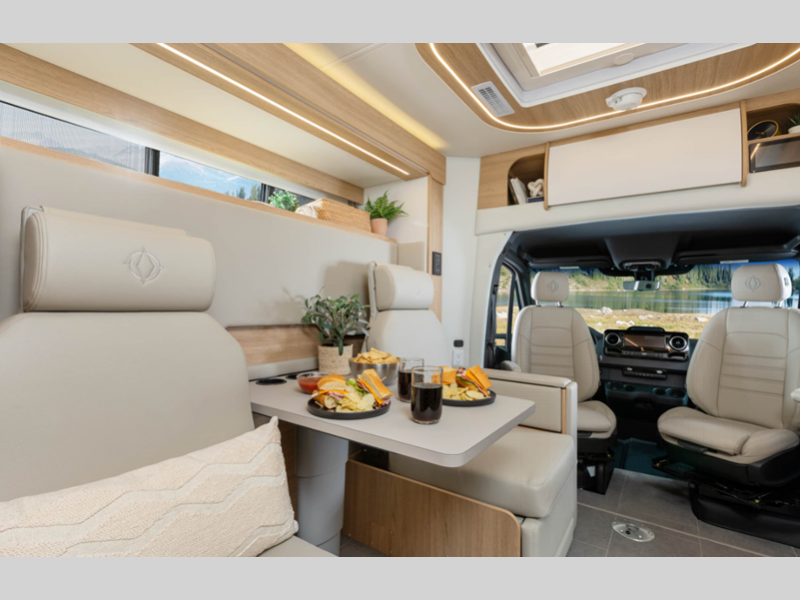

- Ultraleather® Leisure Lounge System Dinette with Flexible Seating and Dining Arrangements (MBL, MB, FX)

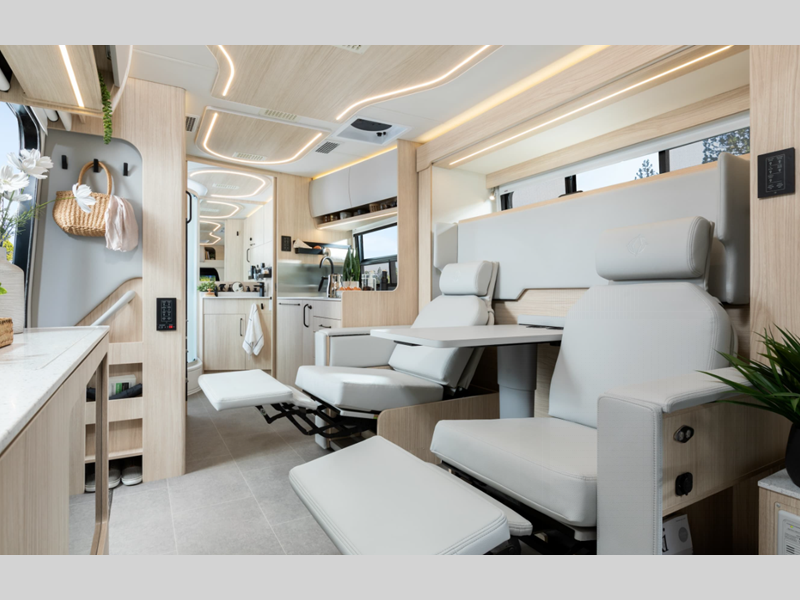

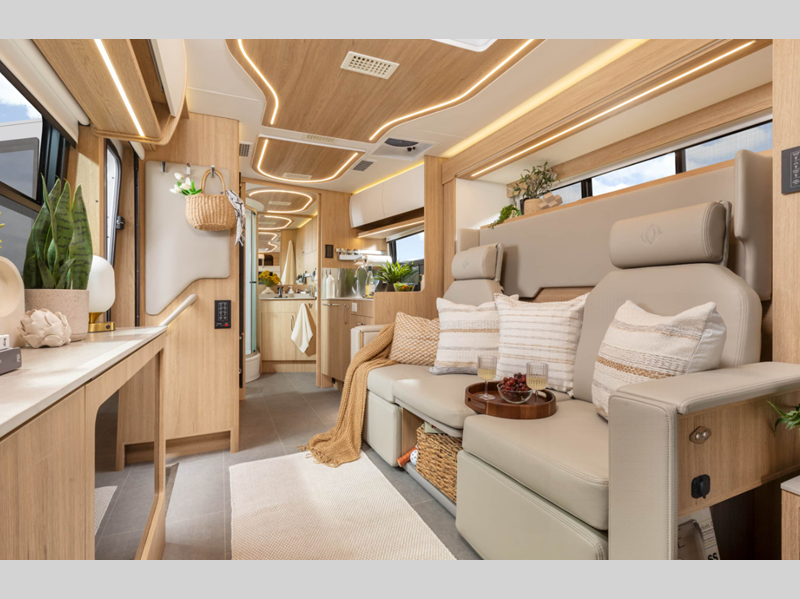

- Ultraleather® Rear Sofa with 2 Power Recliners (RL)
- Ultraleather® Rear Sofa with Hidden Table and Ottoman (FX)

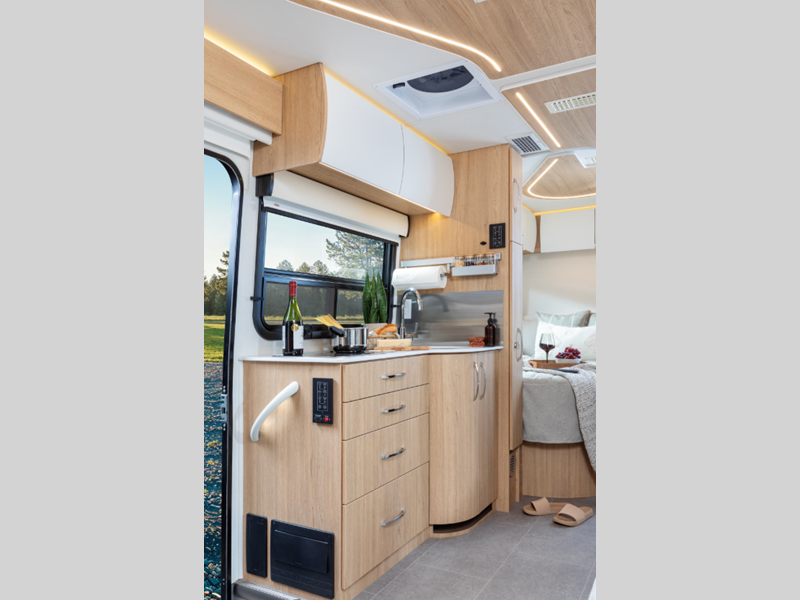

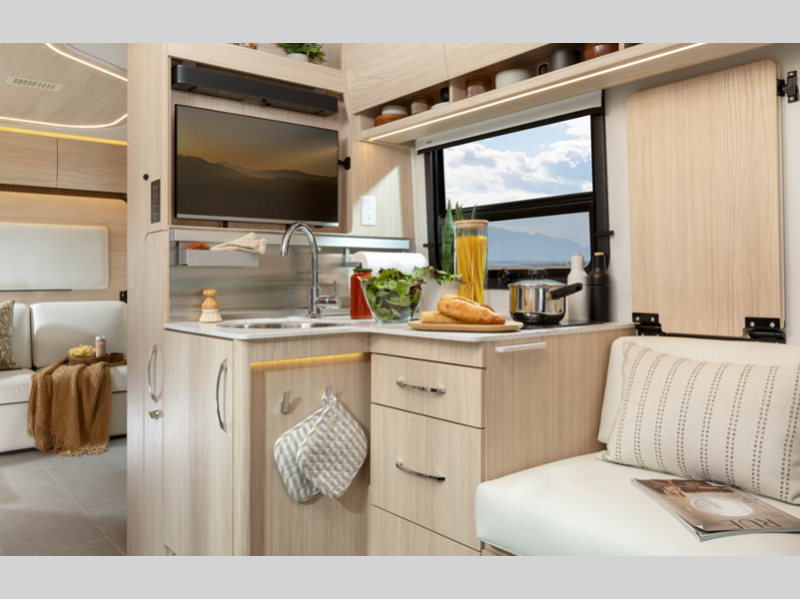

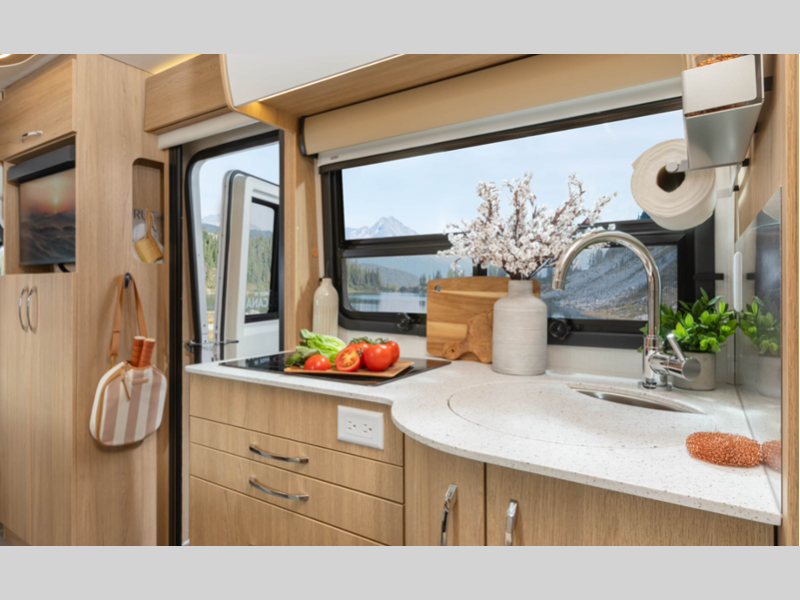

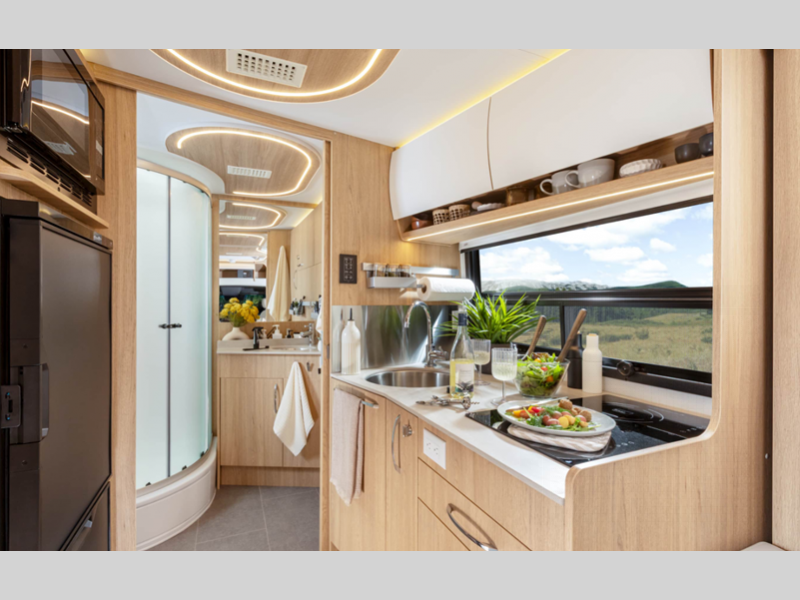

Galley
- Accessory Rail
- Contoured Solid Surface Corian® Countertop
- Convection Microwave Oven
- Countertop Extension (MB, RL, TB)
- 12V Compressor Fridge w/Bottom Freezer Drawer
- Flush Mount LP Cooktop with Hinged Glass Cover
- Garbage Can (MBL, MB, RL, TB)
- Pull Out Pantry
- Stainless Steel Backsplash
- Stainless Steel Undermount Sink with Sink Cover

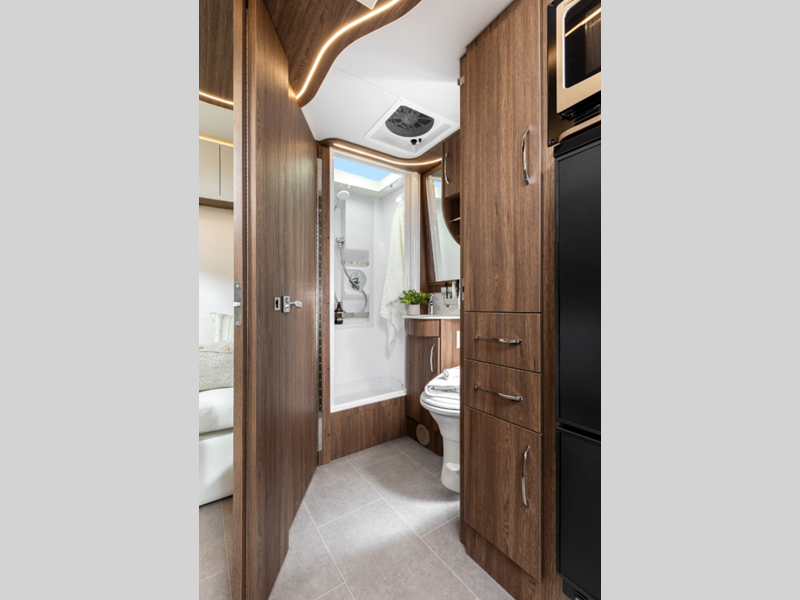

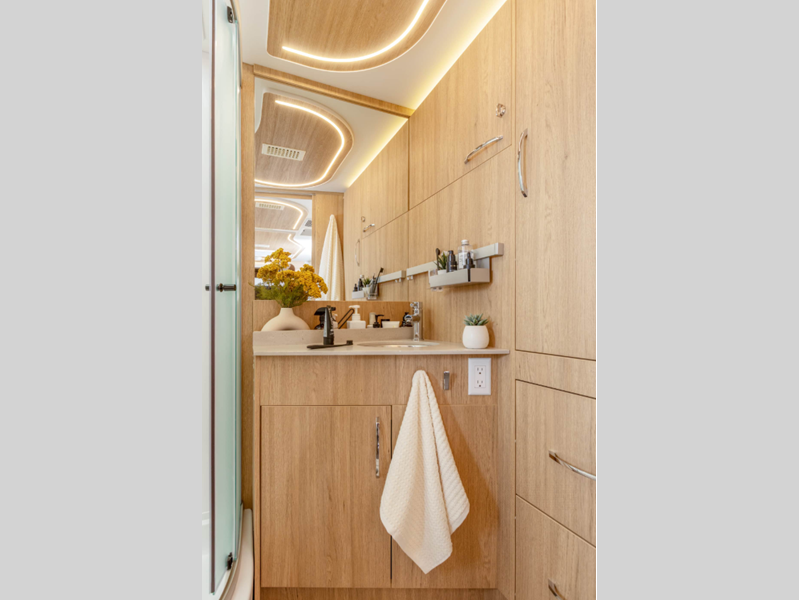

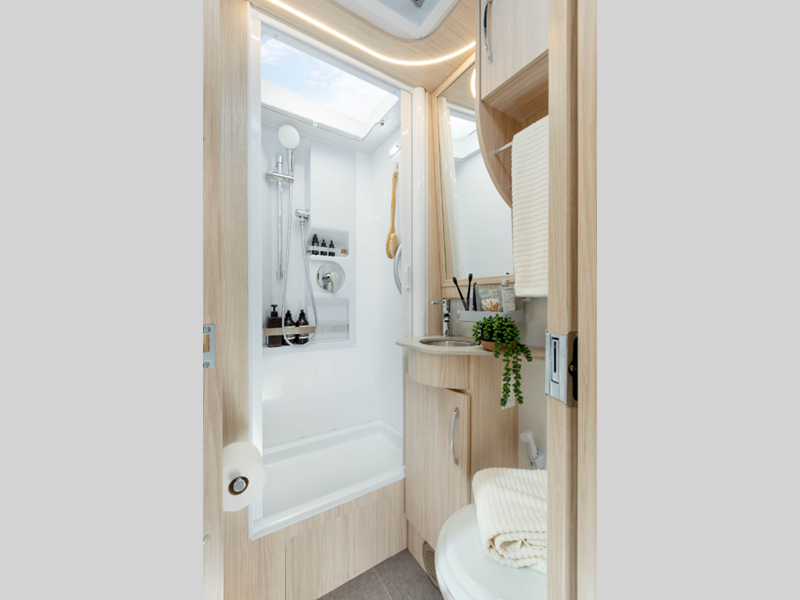

Lavatory
- Accessory Rail
- Ceramic Foot Flush Toilet with Hand Sprayer (MB, FX, CB)
- Ceramic Macerator Toilet (MBL, RL, TB)
- Curved Glass Shower Door (MBL, MB)
- Flip Down Towel Bar in Shower
- Grab Handle in Shower
- Medicine Cabinet with Towel Bar (MB, FX, CB, RL, TB)
- Retractable Self Cleaning Shower Screen (FX, CB, RL, TB)
- Robe Hook in Shower

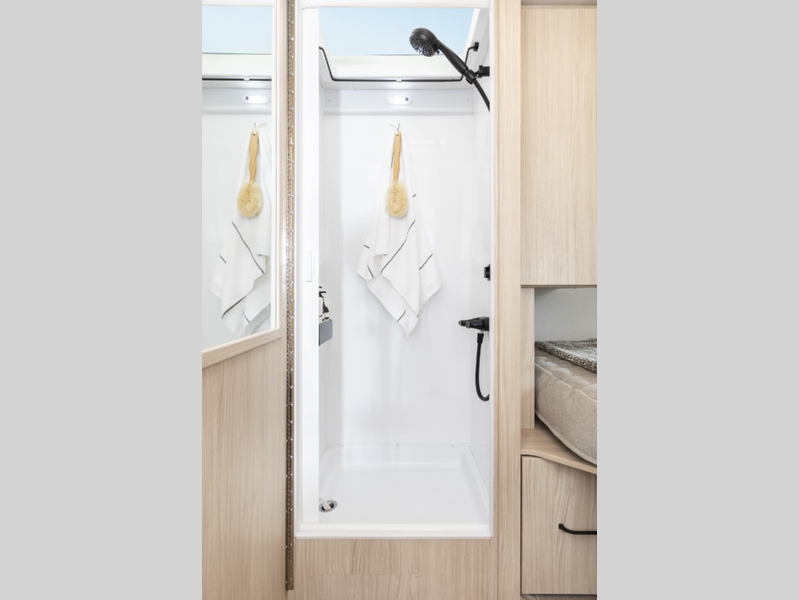

- Shower with Integrated Storage
- Shower Skylight
- Sink - Solid Surface Seamless (MB)
- Sink - Stainless Steel Undermount Sink (MBL, FX, CB, RL, TB)
- Water Pump Switch in Lavatory
Entertainment
- Exterior Cable TV Hookup
- Mobile Data/WiFi Extender with Integrated TV Antenna
- Satellite Dish Pre-Wire
- USB Outlets in Bed and Living Areas
Heating, Ventilating, and Air Conditioning
- Air Conditioner – Truma Aventa Eco 13,500 BTU Ducted
- Furnace – 19,000 BTU (MB, FX, CB, RL, TB)
- Furnace – Truma Varioheat (MBL)
- Lavatory Fan and Galley Fan
Electrical
- 120V GFI Receptacle (Patio, Galley, and Lavatory Protected)
- 12-V Battery Disconnect
- 2000W Pure Sine Inverter with 80 A Battery Charger
- 30 ft. Power Cord – 30 A
- Dual 12-V Lithium Coach Batteries
- Multiplex Wiring Control System (RL)
- Surge Protector
Plumbing and LP Systems
- Antifreeze Pick Up Kit
- Black Tank Flushing System
- Contained Sewer Hose
- Exterior Shower
- LP Tank
- Multiple Water Pump Switches
- Quick Connect Exterior Accessory LP Outlet
- Tank Level, Battery Monitoring Panel
- Truma AquaGo Comfort Plus Water Heater
- Water Filtration System Water Heater By-Pass Valve
- Water Selector Valve (City Water or Water Tank Fill)
Awning Packages
- Powered Legless Box Awning with Wind Sensor and LED Lights
- Slide Topper Awning (MBL, MB, CB, FX)
Certification
- Canadian Certification – Mandatory for Canada (Optional)
- RVIA Certification
Optional Equipment

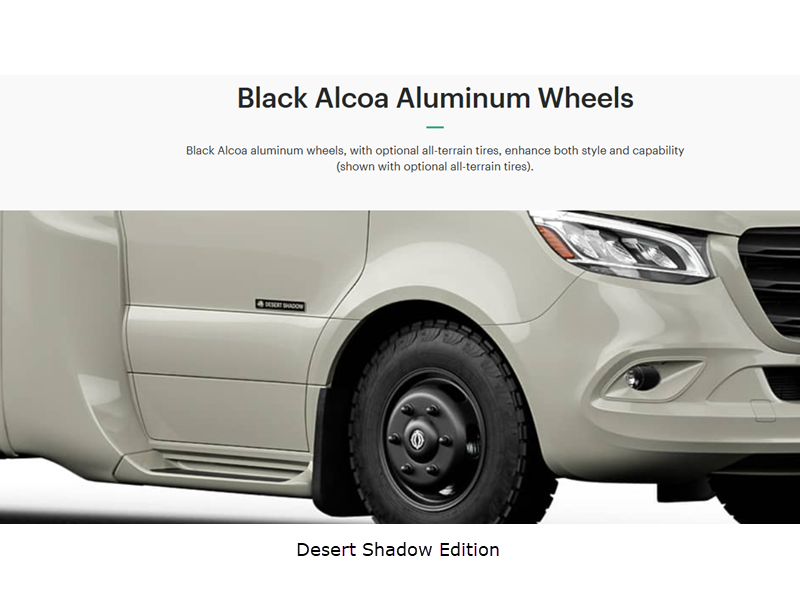

- Alcoa Dura-Bright® Aluminum ® Wheels (6) – Outer 4 Dura-Bright Finished
- Exterior Ladder
- Exterior Table
- Front Dinette Inflatable Mattress Kit (RL, TB)
- Generator – 3.6-kW Onan LP with Auto Start and Auto Changeover Switch
- Jacks – 4 Point Leveling System Leisure Lounge Plus (MB)
- Macerator – Termination with Manual Disconnect

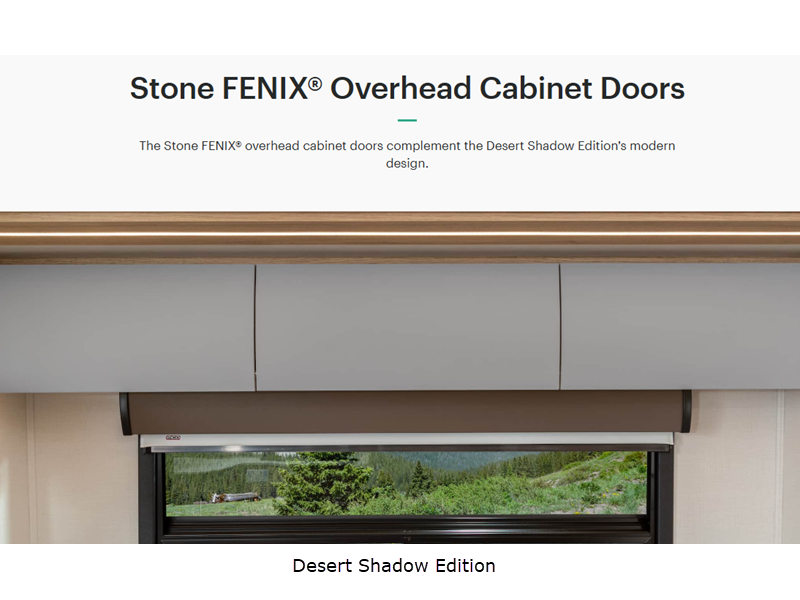

- Overhead Cabinet Door Upgrade – Bianco White FENIX® Matte
- Remote Key Fob Entry – Coach Entrance Door
- Removable Table between Captain’s Chairs (MBL, MB, FX, CB)
- Safe
- Satellite – Auto Acquisition Winegard Road Trip 4 (DirectSD, DishHD, BellHD)
- Solar Panels – 200 W Rigid Low Profile with Control Panel
- Solar Panels – 400 W Rigid Low Profile with Control Panel
- U-Lounge Dinette (CB)
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Manu-Facts:
A Solid Foundation
It has been said that you don’t know where you're going if you don’t know where you’ve been. For Triple E Recreational Vehicles, our journey started more than 50 years ago with a small 13 foot travel trailer.
Today, Triple E is a premier manufacturer of Class C motorhomes with a reputation for building the highest quality and most innovative luxury, compact RVs in the industry.
In 2008, Triple E acquired Leisure Travel Vans, giving Triple E a quality Class B and C lineup with an established presence in the United States. This acquisition allowed Triple E to expand its dealer network and target the United States market.
In 2010, the RV division completed its consolidation of Triple E RV and Leisure Travel Vans into one operation. Due to the tough economic climate, Triple E made a strategic decision to discontinue Class A, travel trailer, and fifth wheel production, focusing solely on the Class B and C markets. All products would be constructed on a motorized chassis, streamlining production.
2009 brought the introduction of the revolutionary Unity U24MB, which featured the first automated Murphy Bed in a 24' Class C motorhome based on the Sprinter chassis. The Murphy Bed floorplan allowed for features such as a residential bed, a spacious front living area, and a large, separate bathroom. The product name Unity was chosen to reflect the joining of Leisure Travel Vans and Triple E RV as it was the first product to be fully designed and manufactured after the consolidation of the two companies.
From day one, Triple E has been a family company that strives to inspire dedication, loyalty, and work ethic. We have worked on building a culture where community is of utmost importance and we are fortunate to be located in an area with a rich cultural heritage.
Today we look to the future with renewed energy and optimism. Our company has strong leadership and an excellent workforce. Our products are recognized as some of the finest in the industry. The next generation of our company is driven by innovation while remaining committed to our long-standing history of quality craftsmanship.
