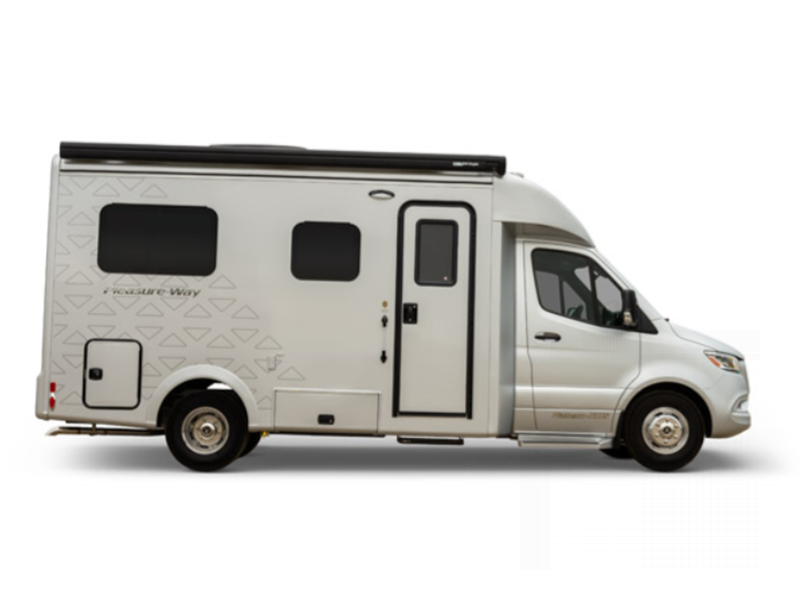

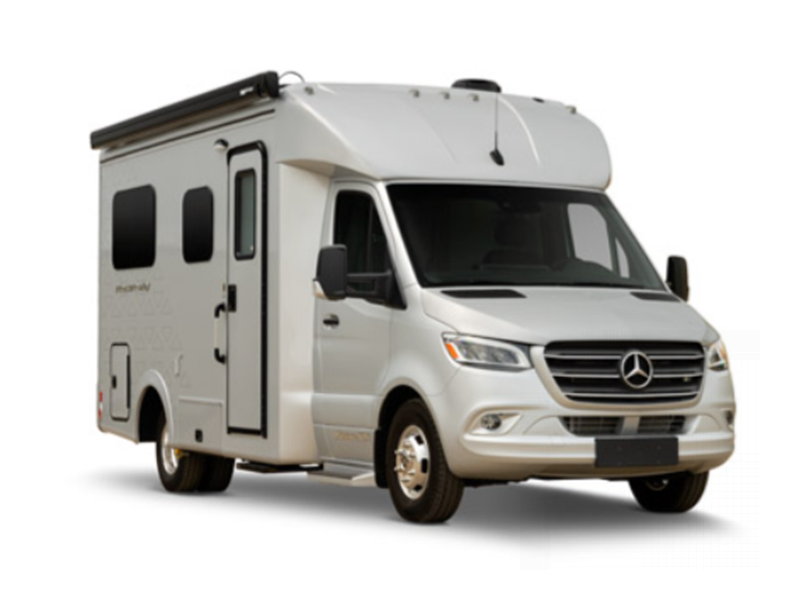

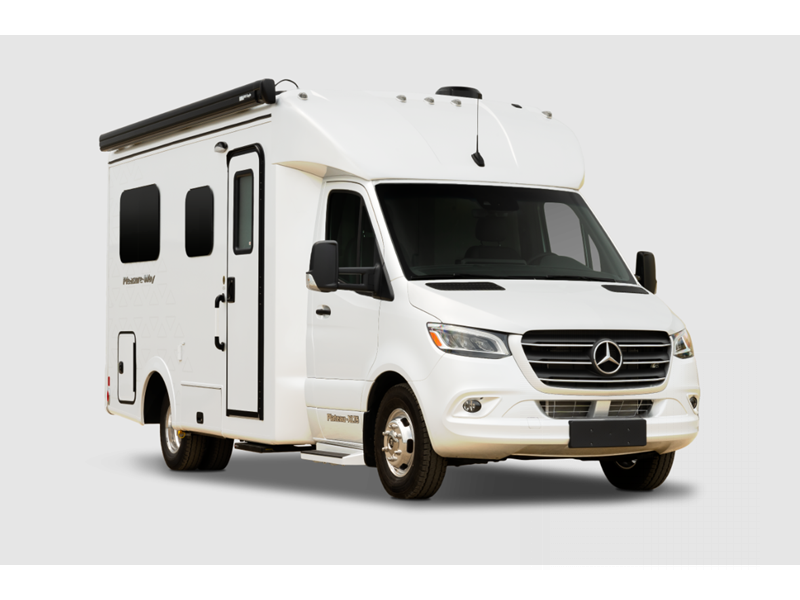

Pleasure-Way Plateau XLTS Motor Home Class B+ - Diesel RVs For Sale

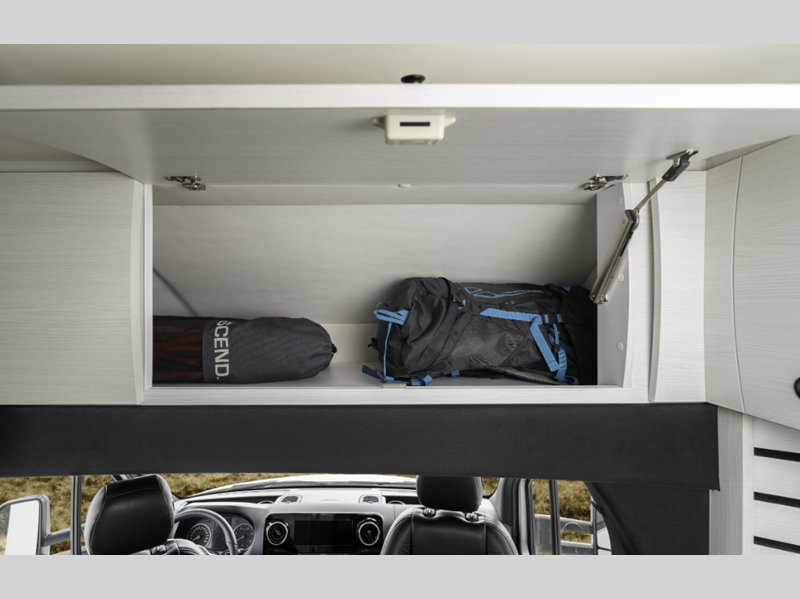

The Plateau XLTS Class B+ diesel motorhome by Pleasure-Way has it all from accent lighting to Truma appliances! Their innovative widebody is packed full of upgrades and enhancements like a 500 watt solar package, 600 amp hours of lithium coach batteries, and exceptional storage space.
Enjoy flexible living space with a Lagun table that can be mounted in both the front and rear living area. The Sikaflex bonded fiberglass walls, full-body paint, and steel-framed roof, walls and floor are sure to hold up through your greatest adventures for many years. With a Fiamma power awning, you can escape the sun's intense rays while still breathing in some fresh air, plus the LED lighting on it can be controlled by the touchscreen panel.
Step into a true standout motorhome with this Pleasure-Way Plateau XLTS Class B+ diesel!
-

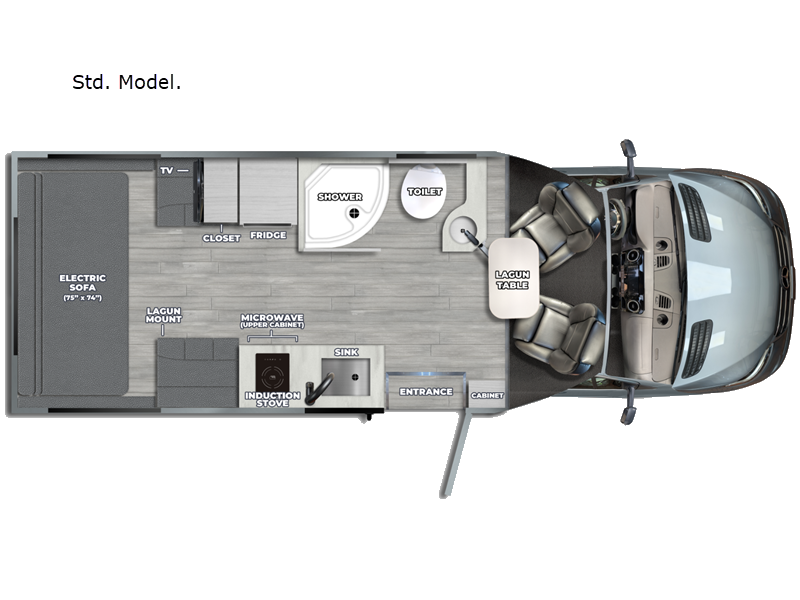

Plateau XLTS Std. Model
Pleasure-Way Plateau XLTS Class B+ diesel Std. Model highlights: Electric Sofa ... more about Plateau XLTS Std. Model
Featured Std. Model
Specifications

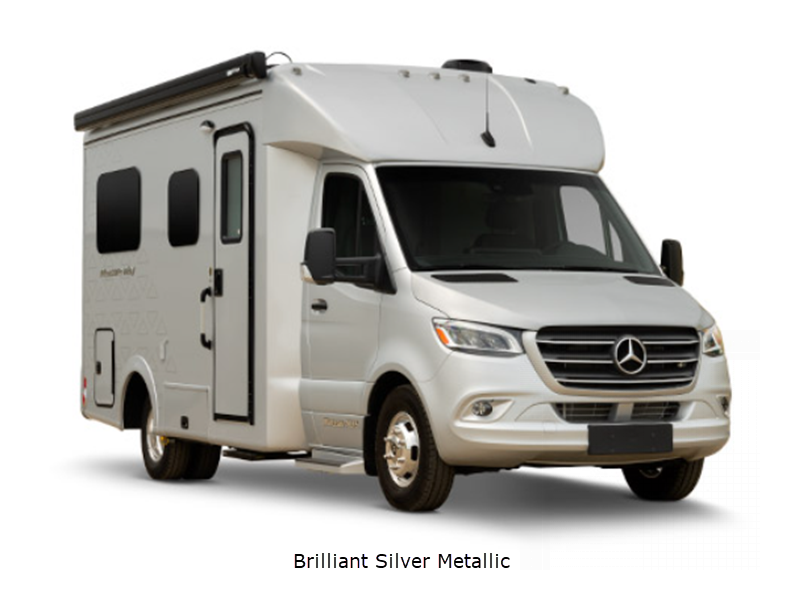

Sleeps 3 Length 22 ft 9 in Ext Width 9 ft 2 in Ext Height 10 ft 7 in Int Height 6 ft 8 in Interior Color Cashmere, Flint Exterior Color Brilliant Silver Metallic Hitch Weight 4220 lbs GVWR 11030 lbs Cargo Capacity 4220 lbs Fresh Water Capacity 28 gals Grey Water Capacity 20.4 gals Black Water Capacity 17.4 gals Tire Size LT215/85 R16 Furnace BTU 11500 btu Generator 2.5 KW Onan QG 2500i LP Fuel Type Diesel Engine 4-Cylinder OM 654 High Output Chassis Mercedes-Benz Sprinter 3500 Horsepower 211 hp Fuel Capacity 26 gals Wheelbase 170 in Refrigerator Type 12V Norcold Refrigerator Size 5.3 cu ft Cooktop Burners 1 Shower Size 32" Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs Water Heater Type Truma AquaGo Comfort Plus AC BTU 13500 btu TV Info LR 24" Smart LED TV Awning Info Fiamma Power w/ LED Lights Gross Combined Weight 15250 lbs Shower Type Radius Electrical Service 30 amp
Plateau XLTS Features:
Standard Features (2025)
Entertainment
- 24” Smart LED TV w/ swing out mount
- Bose® soundbar w/ Bluetooth®
- Winegard® Rayzar® Automatic HDTV antenna
- Cable TV hook up
- USB-A & USB-C charging ports
Interior
- LED accent lighting
- Blackout roller shades w/ magnetic catch
- Folding privacy/sun shades for windshield & cab door windows
- Screen entry door
- Inflatable air bed fitted for cab
- Lagun table mount in front living space
- Radius Laminate cabinet doors
- Hidden ‘push to open’ positive cabinet latches
- Blum® cabinet hinges and door stays
- Recessed LED lighting under cabinets and along roof
- Wardrobe w/ hanging rod
- Laminate-wrapped kitchen, wall partitions and cabinet boxes
- Vinyl soft touch headliner
- Premium vinyl flooring
- Microfiber suede upholstery on rear walls
- 3M™ Thinsulate™ insulation inside walls
- Foil-faced fiberglass insulation along roof
- Fire extinguisher
- LP, CO & Smoke detectors

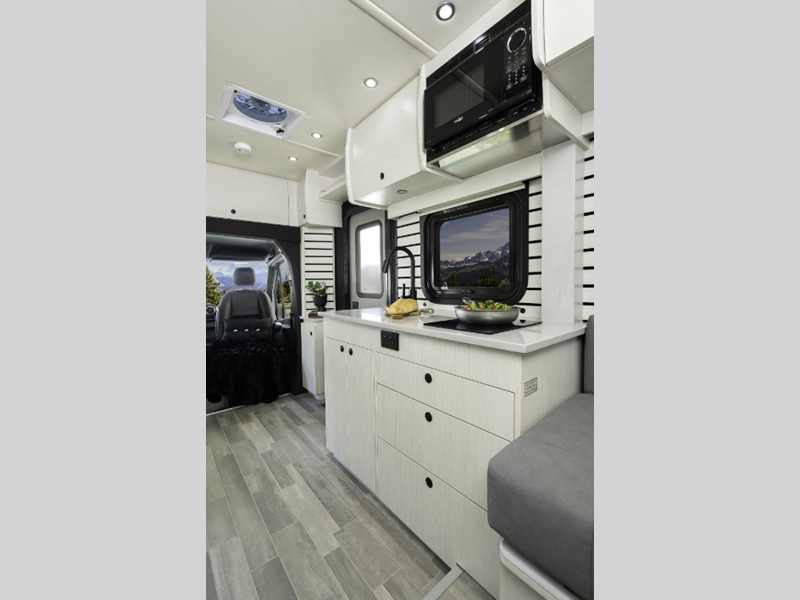

Galley

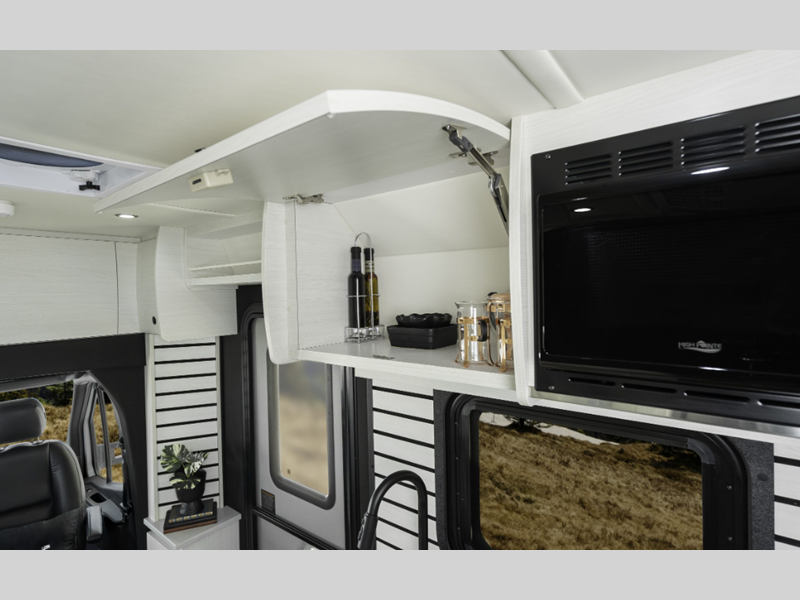

- 12V, 5.3 cu.ft. Norcold refrigerator/freezer
- 1-burner induction cooktop
- Microwave
- Large undermount stainless steel sink w/ Corian® cover
- High-arc, single-handle faucet w/ pull-out sprayer
- Corian® solid surface countertop & backsplash
- Full extension ball bearing drawer glides w/ soft close
- Baltic birch drawer boxes
Bathroom

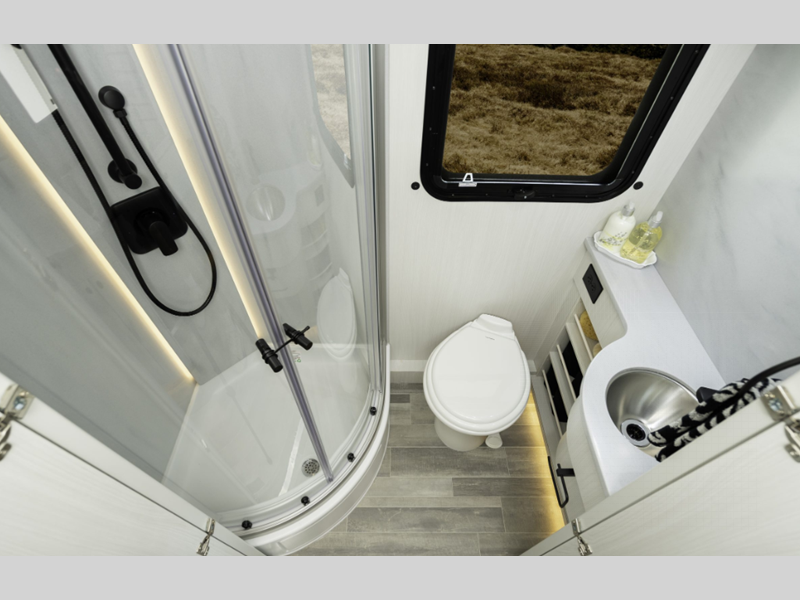

- Private enclosed dry bathroom w/ separate shower

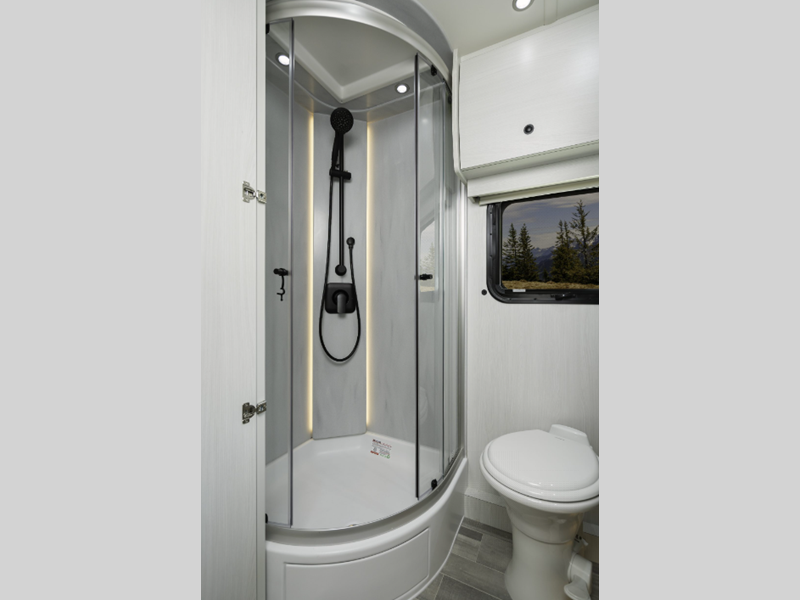

- 32” enclosed Corian®-lined corner shower w/ accent lighting
- Handheld showerhead

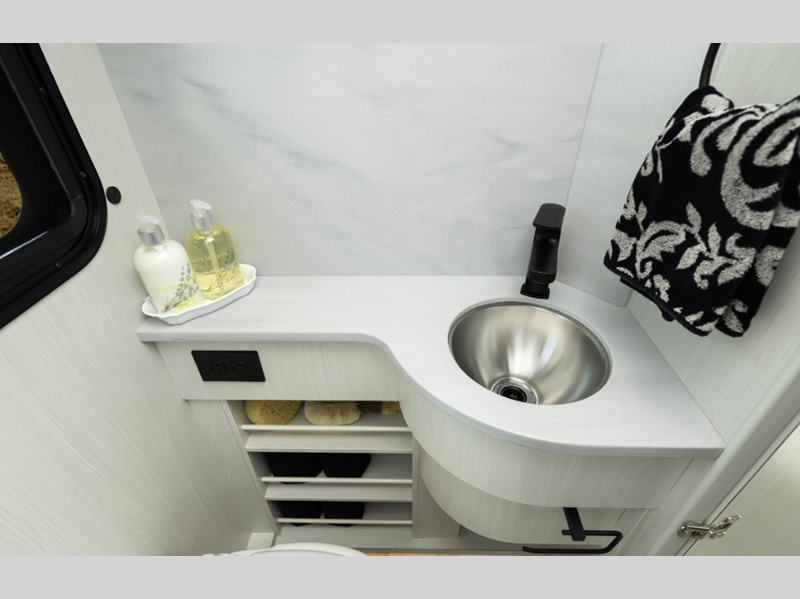

- Corian® countertop and backsplash
- Large vanity w/ storage shelves
- 2 large medicine cabinets
- Adjustable mirror
- Stainless steel sink
- Single-handle faucet
- Residential-style ceramic bowl toilet w/ foot flush
- Awning style opening window w/ privacy shade
- Towel rack
- 110-120 volt GFCI power outlet
Electrical
- Dual 10-inch touchscreen control panels

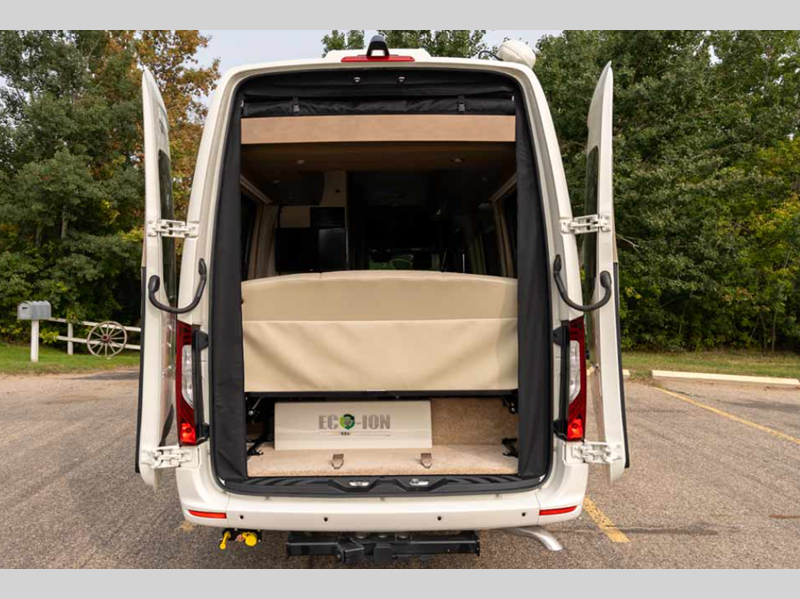

- 600Ah Eco-Ion Earth Smart Lithium (LiFePO4) coach batteries
- Internal/automatic coach battery heating system for cold weather protection
- Xantrex Freedom XC Pro 3000-Watt True Sine Wave Inverter/Charger
- 100-amp lithium charger
- 500-Watt Go Power!® solar package
- Go Power!® MPPT solar controller
- 2.5 KW Onan® QG 2500i LP generator
- Automatic generator start (AGS)
- Mastervolt DC/DC charger
- Multiplex wiring
- Dimmable LED lighting
- 12-volt coach battery disconnect
- Charge line disconnect (solar and alternator)
- 30-amp power cord
- AC distribution panel
- DC load center
Touchscreen Control Panel
- Upgraded resolution for wider viewing angles
- 10-inch full-color display
- Integrated inverter controls
- Coach battery state-of-charge meter
- Coach battery temperature gauge
- Estimated time until full charge read-out
- Remaining runtime for DC power read-out
- Real-time 12-volt net loss/gain amperage meter
- Solar charger controls and monitoring
- Tank level monitoring – LP, fresh, grey and black
- Climate control center w/ thermostat for A/C, vent and furnace
- Truma AquaGo® comfort plus water heater controls
- Dimmable LED light banks
- Water pump, awning, sofa and vent controls
- Generator start/stop and automatic generator start (AGS)
- DC electrical system diagnostics
- Dark and light viewing modes
Exterior
- Fiamma® power awning w/ LED lights
- LED porch light
- Awning style frameless windows
- 110-120 volt power outlet
- Utility center (LP switch, cable TV hook-up, 30-amp power outlet, city water connection)
- Exterior shower w/ handheld wand
- Fiberglass running boards
- Appliance access panels painted to match exterior colour
- Painted plastic moldings and front bumper

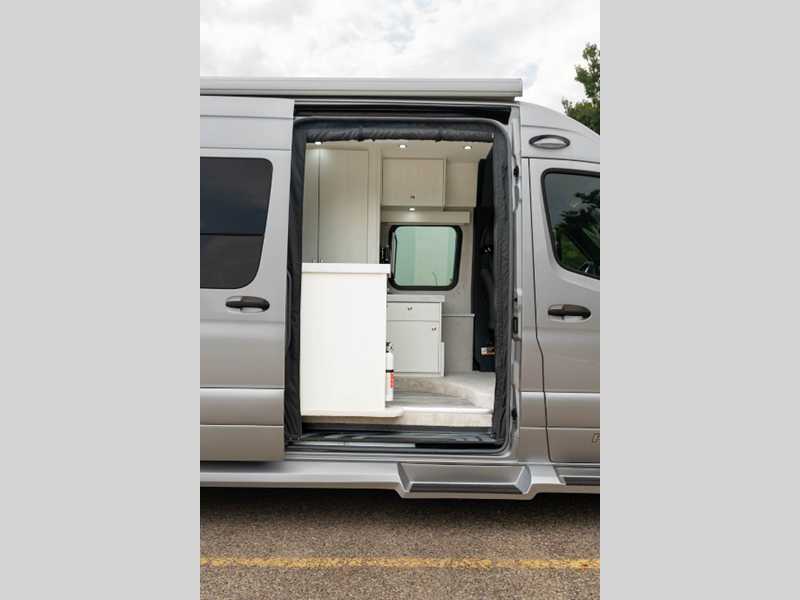

- Full-size entry door w/ separate screen door
- Automatic power entrance step
- Passenger storage compartment w/ locking aluminum door
- Passenger rear storage compartment w/ locking door
- Driver storage compartment w/ locking aluminum door
Heating, Ventilation, & Cooling
- Truma VarioHeat 11,500 BTU Furnace
- Power lift Dometic Fan-Tastic Vent fan w/ rain sensor
- Truma Aventa Eco 13,500 BTU air conditioner
Plumbing & Liquid Propane Systems
- Shurflo® automatic demand water system
- Truma AquaGo® comfort plus instant water heater
- Water heater bypass valves
- Monitor panel for LP, fresh, grey and black tanks
- Sewer discharge center w/ black and grey water gate valves
- Low point drain for water lines
- LP tank w/ electric shut off switch
- LP BBQ quick connect
Rear Seating Area

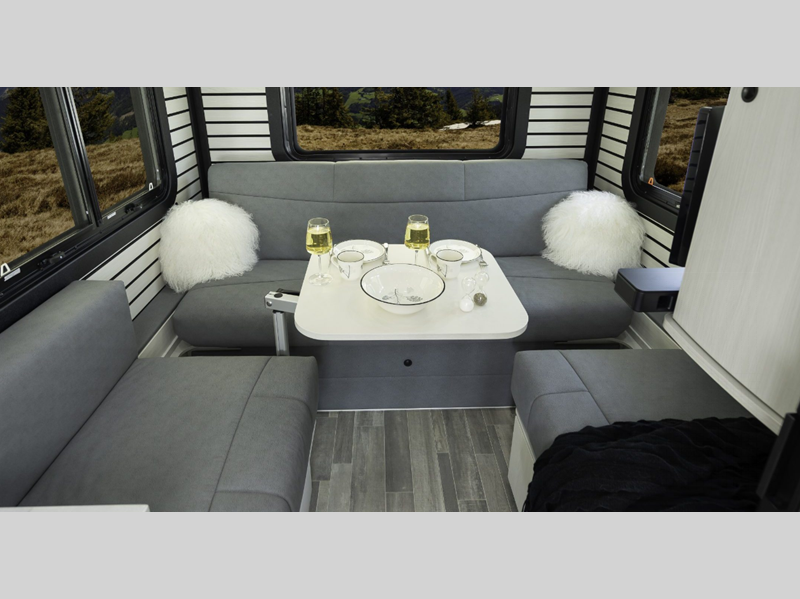

- Lagun table mount system w/ 360° swivel tabletop

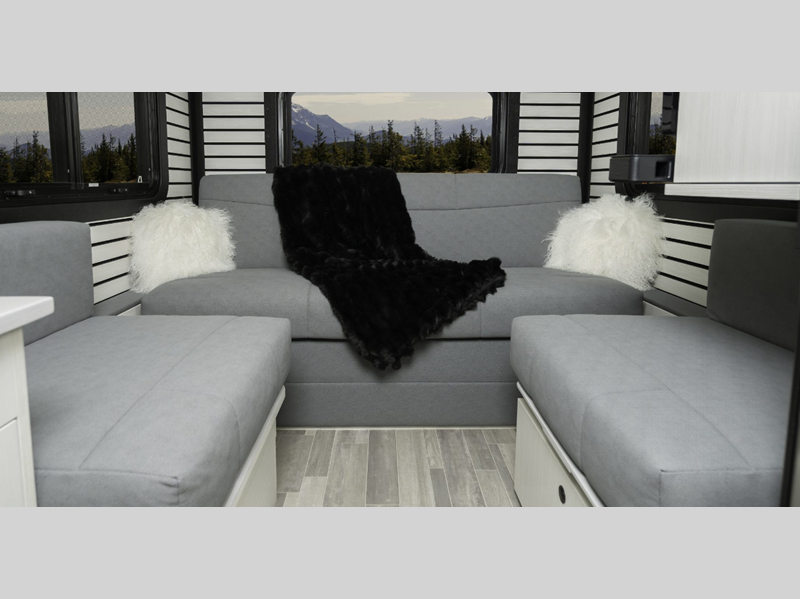

- Power sofa w/ two seat belts
- Memory foam sofa cushions

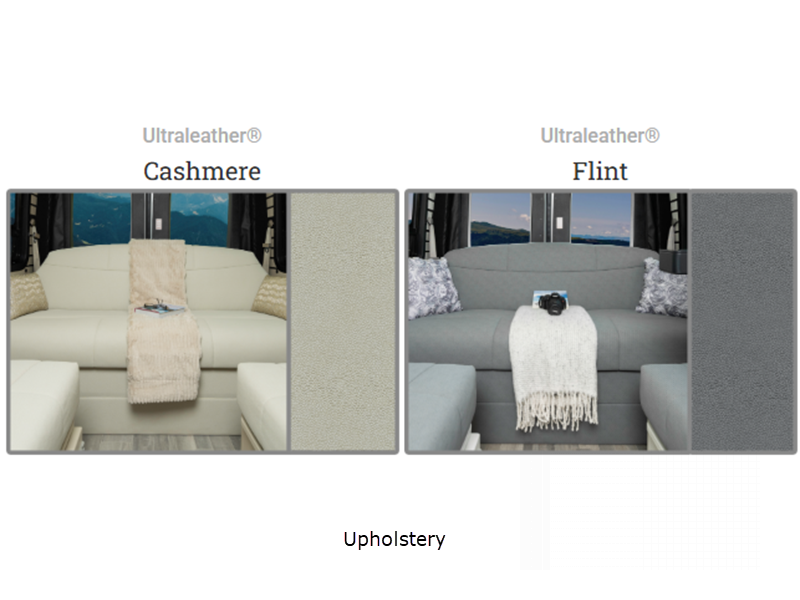

- Ultraleather® fabric
- Cup holders on driver and passenger side
Cab Conveniences

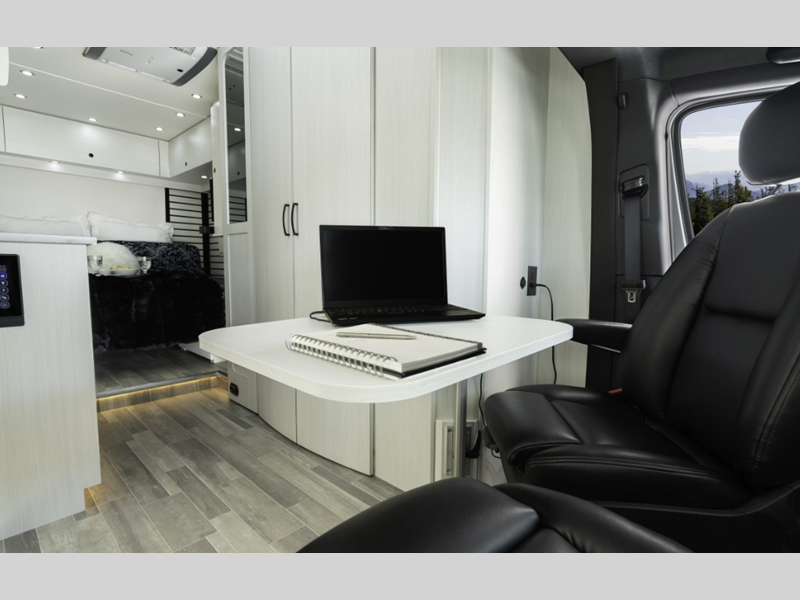

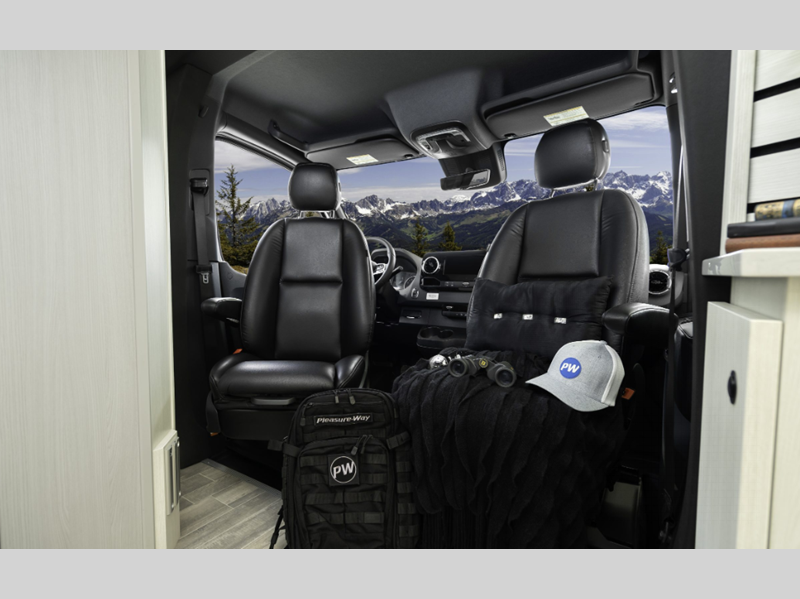

- Driver and passenger power and heated swivel seats
- Mercedes-Benz leather
- Four-way lumbar support
- Power adjustments
- Memory settings
- Three-stage heating controls
- MBUX Multimedia System w/ 10" Touchscreen
- Navigation
- Bluetooth® connectivity w/ audio streaming
- “Hey Mercedes” voice control
- Smartphone integration w/ hands-free function
- Multimedia interface w/ USB-C ports
- Smartphone wireless charging tray
- Keyless ignition
- Rear view camera system
- Air conditioning
- Power windows, door locks and mirrors
- Tilt / telescopic steering wheel
- Chassis battery quick-disconnect
- Overhead control panel w/ 2 reading lights
Safety
- Airbags – driver and passenger
- Attention Assist
- Active Brake Assist
- Active Distance Assist Distronic
- Active Lane Keeping Assist
- Crosswind Assist
- Hill Start Assist
- Traffic Sign Assist
- Wet wiper system w/ rain sensor
- LED high performance headlamps
- Tire repair kit w/ air compressor and repair liquid
- Locking fuel fill
Widebody Superstructure
- Steel-framed roof, walls and floor
- Sikaflex® bonded fiberglass walls
- One-piece moulded fiberglass roof
- Full-body Glasurit® paint
- LED tail and marker lights
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Manu-Facts:
A Strong Heritage of Innovation, Integrity and Building Lasting Relationships
Pleasure-Way founder, Merv Rumpel, started this company on the foundation of an old-fashioned work ethic, pride in craftsmanship and a customer comes first approach to business. Dean Rumpel, Merv’s son, is now the Pleasure-Way CEO and is proud to follow these same principles today.
Even now, in the company’s 35th year, we do not mass produce our motorhomes on assembly lines, as each motorhome is hand-crafted and custom-fit to exacting standards and quality inspections. We are proud of each and every one of the motorhomes we have built and continue to stand behind our work.
We would never be where we are today without the incredible dedication our employees have shown and the enthusiastic support from our owners. We strive to create motorhomes that live up to both our high standards and your high expectations. With this in mind, we will continue to create modern products that will last for years to come.
